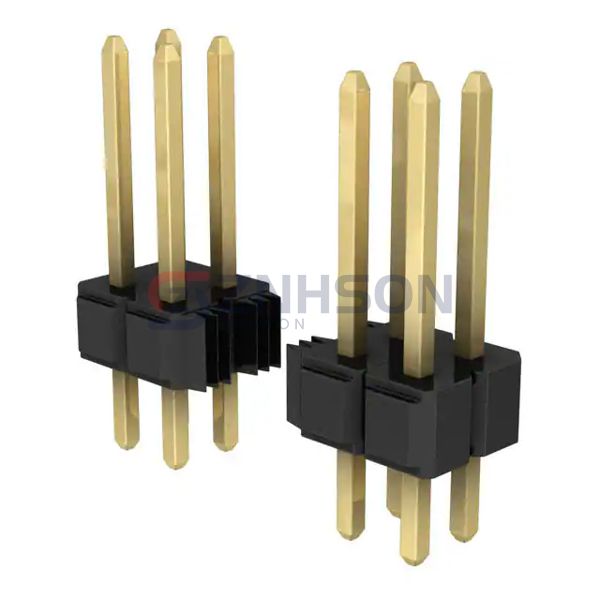

929715-11-06-EU
3M
3M
CONN HEADER VERT 12POS 2.54MM
$1.96
Available to order
Reference Price (USD)
1+
$1.86000
10+
$1.69000
25+
$1.58600
50+
$1.51720
100+
$1.44820
250+
$1.31024
500+
$1.20680
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 929715-11-06-EU by 3M is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 929715-11-06-EU supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. 3M ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 12
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.125" (3.18mm)
- Overall Contact Length: 0.543" (13.80mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: -
Related Products
Preci-Dip
800-10-061-10-002101
Adam Tech
LHB-04-SA1
Samtec Inc.
TSM-106-01-F-SV-A-P-TR
Preci-Dip
894-80-024-20-001101
Samtec Inc.

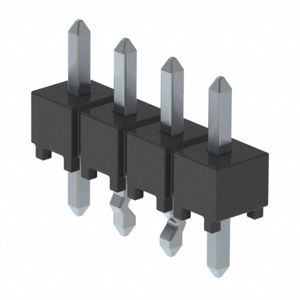

HTSW-104-06-TM-S-LL
Mill-Max Manufacturing Corp.

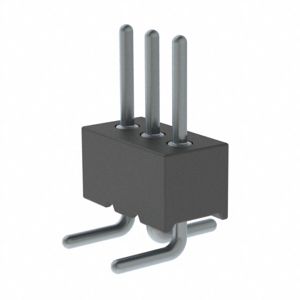

850-40-003-30-001000
Sullins Connector Solutions

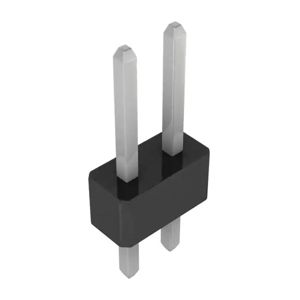

GEC01DAAN
Sullins Connector Solutions

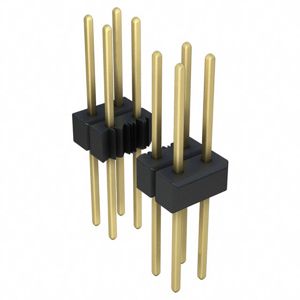

PBC13DFCN
