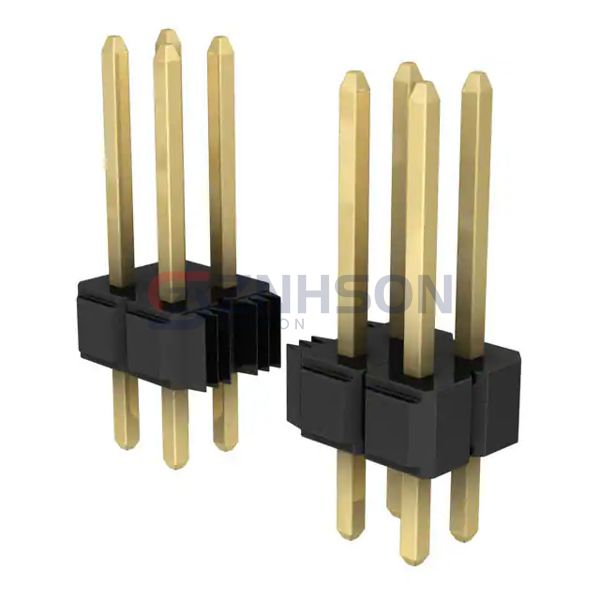

929715-11-18-EU

Manufacturer

Description:

CONN HEADER VERT 36POS 2.54MM

Datasheet:

929715-11-18-EU Datasheet

$5.43

Available to order

Reference Price (USD)

$5.17000

10+

$4.96500

25+

$4.55120

50+

$4.34440

100+

$4.13760

250+

$3.62040

500+

$3.51696

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The 929715-11-18-EU by 3M is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 929715-11-18-EU supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. 3M ensures each connector meets rigorous quality standards for global compliance.

Specifications

Product Status: Active
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 36
Number of Rows: 2
Row Spacing - Mating: 0.100" (2.54mm)
Number of Positions Loaded: All
Style: Board to Board
Shrouding: Unshrouded
Mounting Type: Through Hole
Termination: Solder
Fastening Type: Push-Pull
Contact Length - Mating: 0.318" (8.08mm)
Contact Length - Post: 0.125" (3.18mm)
Overall Contact Length: 0.543" (13.80mm)
Insulation Height: 0.100" (2.54mm)
Contact Shape: Square
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Contact Material: Copper Alloy
Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT)
Features: -
Operating Temperature: -40°C ~ 105°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Current Rating (Amps): 2.5A
Voltage Rating: -

Shopping cart

929715-11-18-EU

Reference Price (USD)

Specifications

Related Products

0452801052

TSW-105-14-L-D

10129383-906001ALF

647676-6

TSW-145-07-T-S

TMM-113-05-G-D-SM-TR

3-1445089-2

0015912165

TMM-101-01-S-D

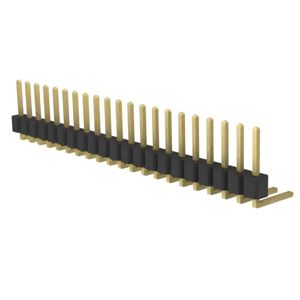

PRPC021SBBN-M71RC
