929834-05-30-RK
3M
3M
CONN HEADER VERT 30POS 2.54MM
$2.71
Available to order
Reference Price (USD)
1+
$2.58000
10+
$2.47700
25+
$2.27040
50+
$2.16720
100+
$2.06400
250+
$1.80600
500+
$1.75440
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

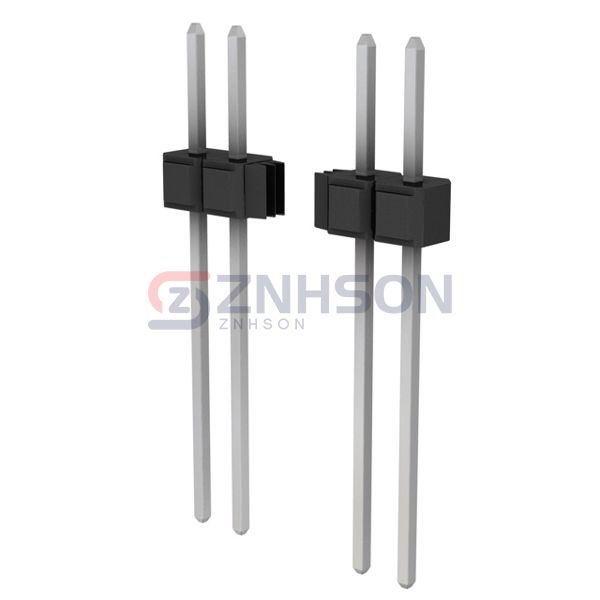

Optimize your interconnections with the 929834-05-30-RK rectangular connector header from 3M. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the 929834-05-30-RK is perfect for automotive, industrial, and consumer electronics. 3M ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 30
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.235" (5.97mm)
- Contact Length - Post: 0.610" (15.49mm)
- Overall Contact Length: 0.945" (24.00mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 200.0µin (5.08µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: -
