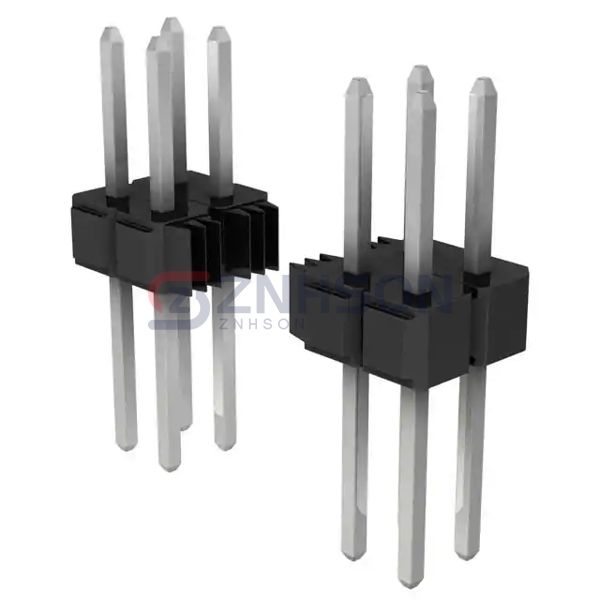

929836-08-25
3M
3M
CONN HEADER VERT 50POS 2.54MM
$4.22
Available to order
Reference Price (USD)
1+
$4.02000
10+
$3.85600
25+
$3.53480
50+
$3.37400
100+
$3.21330
250+
$2.81168
500+
$2.73134
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 929836-08-25 from 3M is a high-quality rectangular connector header designed for reliable interconnections in various electronic applications. These male pin headers feature a robust construction, ensuring secure and stable connections. Ideal for PCB mounting, the 929836-08-25 offers excellent electrical performance and durability. With options for different pin counts and pitches, this connector is versatile for numerous industrial and consumer electronics. Applications include automotive systems, telecommunications equipment, and home appliances. Choose 3M for precision-engineered connectors that meet global standards.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 50
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.235" (5.97mm)
- Contact Length - Post: 0.310" (7.87mm)
- Overall Contact Length: 0.645" (16.38mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin-Lead
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: -
- Contact Material: Copper Alloy
- Insulation Material: Polybutylene Terephthalate (PBT), Polyester, Glass Filled
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: -
Related Products
Samtec Inc.
FTE-189-01-G-DV-A
Sullins Connector Solutions
PEC32SFDN
Samtec Inc.
FTE-150-02-G-DV-A-TR
Sullins Connector Solutions
PEC25SBEN
TE Connectivity AMP Connectors
173081-6
Samtec Inc.
TSW-135-08-G-D-RA
Mill-Max Manufacturing Corp.
852-10-012-30-001000
Samtec Inc.
TSM-102-03-T-DV-TR
Molex

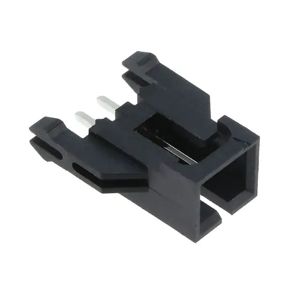

0705410001
