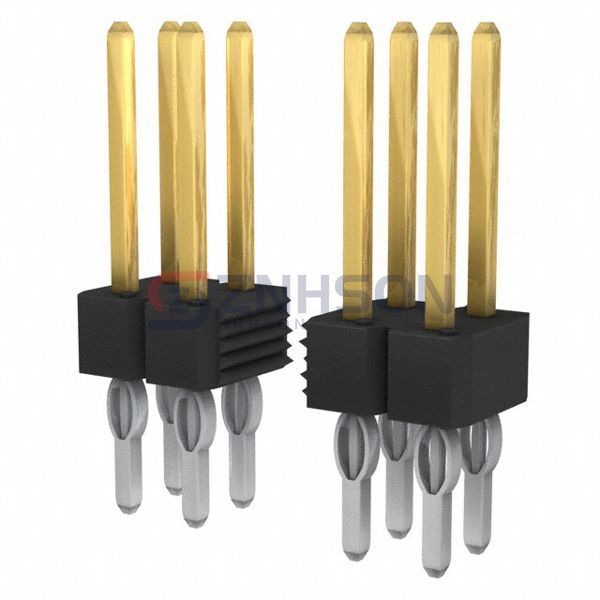

93690-105-30LF
Amphenol ICC (FCI)
Amphenol ICC (FCI)
CONN HEADER VERT 30POS 2.54MM
$2.09
Available to order
Reference Price (USD)
400+
$1.57225
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the 93690-105-30LF rectangular connector header from Amphenol ICC (FCI) for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. Amphenol ICC (FCI) is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 30
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Press-Fit, Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.327" (8.30mm)
- Contact Length - Post: 0.177" (4.50mm)
- Overall Contact Length: 0.608" (15.44mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold, GXT™
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 5A
- Voltage Rating: 110V
