9425-1513-000
Radiall USA, Inc.
Radiall USA, Inc.

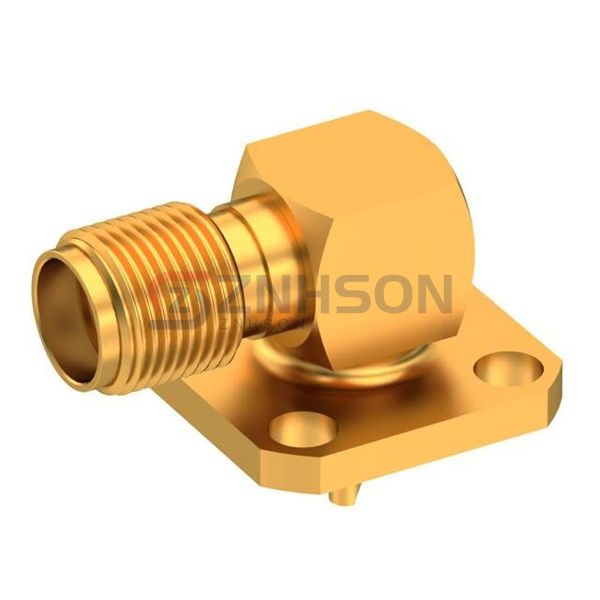

SMA / RIGHT ANGLE JACK RECEPTACL
$38.07
Available to order
Reference Price (USD)
1+
$38.07000
500+
$37.6893
1000+
$37.3086
1500+
$36.9279
2000+
$36.5472
2500+
$36.1665
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for excellence, the 9425-1513-000 from Radiall USA, Inc. sets new standards in Coaxial Connectors (RF) performance. These connectors utilize ultra-precision machining to achieve consistent 50 or 75 impedance matching across all mating cycles. The product line includes SMA, N-type, TNC, and BNC variants with options for straight, right-angle, and bulkhead mounting. Specialized versions feature phase-matched designs for critical array applications. Key industries served include: Satellite communication ground stations Electronic warfare systems High-speed data acquisition systems Microwave radio links. The 9425-1513-000 series stands out with its hybrid design combining the durability of metal connectors with the weight savings of composite materials, ideal for airborne electronic systems.
Specifications
- Product Status: Active
- Connector Style: SMA
- Connector Type: Jack, Female Socket
- Contact Termination: Solder Cup
- Shield Termination: Solder
- Impedance: 50Ohm
- Mounting Type: Panel Mount, Right Angle
- Mounting Feature: Flange
- Cable Group: -
- Fastening Type: Threaded
- Frequency - Max: 18 GHz
- Number of Ports: 1
- Features: Extended Insulation
- Housing Color: Gold
- Ingress Protection: -
- Center Contact Material: Beryllium Copper
