961111-6804-AR
3M
3M

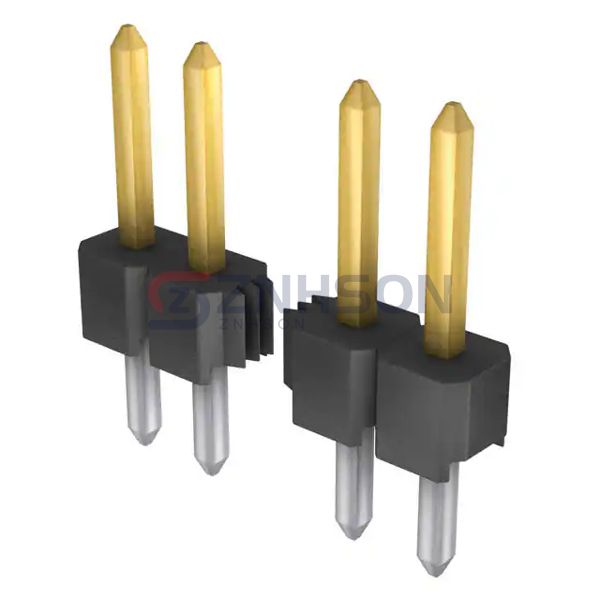

CONN HEADER VERT 11POS 2.54MM
$0.94
Available to order
Reference Price (USD)
1+
$0.97000
10+
$0.86200
25+
$0.81640
50+
$0.78540
100+
$0.75460
250+
$0.69300
500+
$0.63140
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 961111-6804-AR by 3M is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. 3M delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 11
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.268" (6.80mm)
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: 0.496" (12.60mm)
- Insulation Height: 0.098" (2.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic
- Features: -
- Operating Temperature: -25°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2A
- Voltage Rating: -
