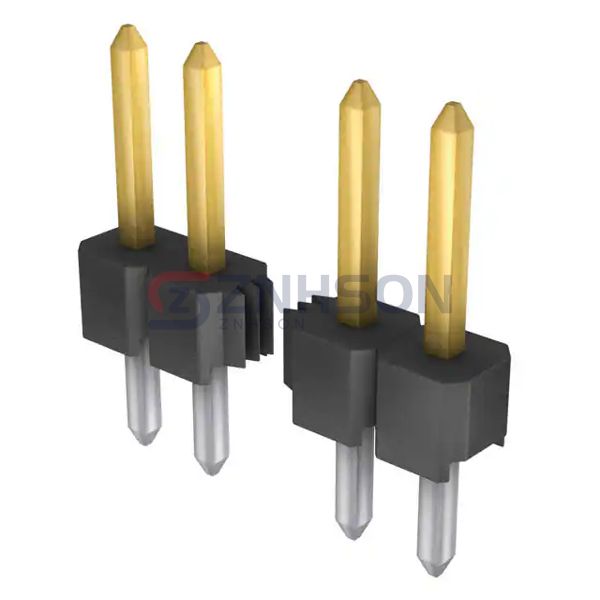

961128-6404-AR
3M
3M
CONN HEADER VERT 28POS 2.54MM
$2.22
Available to order
Reference Price (USD)
1+
$2.32000
10+
$2.11700
25+
$1.99920
50+
$1.92080
100+
$1.84240
250+
$1.68560
500+
$1.56800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 961128-6404-AR male pin header by 3M offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose 3M for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 28
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.217" (5.50mm)
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: 0.445" (11.30mm)
- Insulation Height: 0.098" (2.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic
- Features: -
- Operating Temperature: -25°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2A
- Voltage Rating: -
