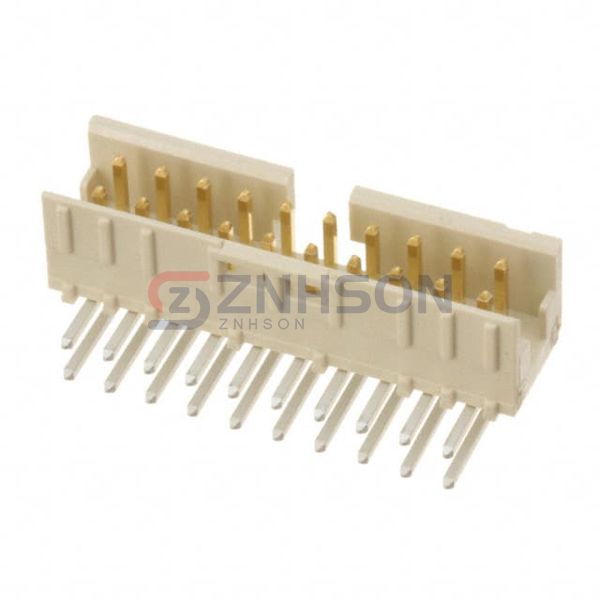

98464-F61-20ULF
Amphenol ICC (FCI)
Amphenol ICC (FCI)
CONN HEADER R/A 20POS 2MM
$2.31
Available to order
Reference Price (USD)
1+
$1.83000
10+
$1.66000
450+
$1.28724
900+
$1.15176
1,350+
$1.01625
5,400+
$0.90108
10,350+
$0.88075
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 98464-F61-20ULF by Amphenol ICC (FCI) is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Amphenol ICC (FCI) delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: 0.157" (4.00mm)
- Contact Length - Post: 0.098" (2.50mm)
- Overall Contact Length: -
- Insulation Height: 0.240" (6.10mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic
- Features: Keying Slot
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Cream
- Current Rating (Amps): 2A (AC/DC)
- Voltage Rating: 200V (AC/DC)
