A221T10V22
Nicomatic
Nicomatic
MALE 10POS STRAIGHT SMT 1.27MM
$11.18
Available to order
Reference Price (USD)
1+
$11.18000
500+
$11.0682
1000+
$10.9564
1500+
$10.8446
2000+
$10.7328
2500+
$10.621
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the A221T10V22 rectangular connector header from Nicomatic. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the A221T10V22 meets the highest industry standards. Nicomatic provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.039" (1.00mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.039" (1.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Screw Lock
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.157" (4.00mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 5.90µin (0.150µm)
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Mating Flange, Mounting Flange, Mounting Hardware
- Operating Temperature: -65°C ~ 200°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: 600VAC
Related Products
Molex
0428195224
Harwin Inc.
G125-MH13405L3P
TE Connectivity AMP Connectors
6-104071-4
Samtec Inc.
TSM-102-01-L-DV-TR
Amphenol Sine Systems Corp
AT15-6P-BM01GRY
Samtec Inc.
FTE-150-02-G-DV-A
3M
929836-08-20
Samtec Inc.

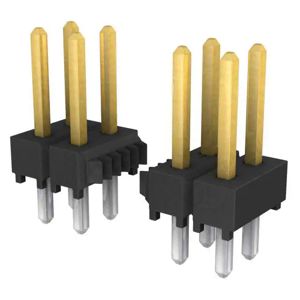

TSW-109-07-S-D
