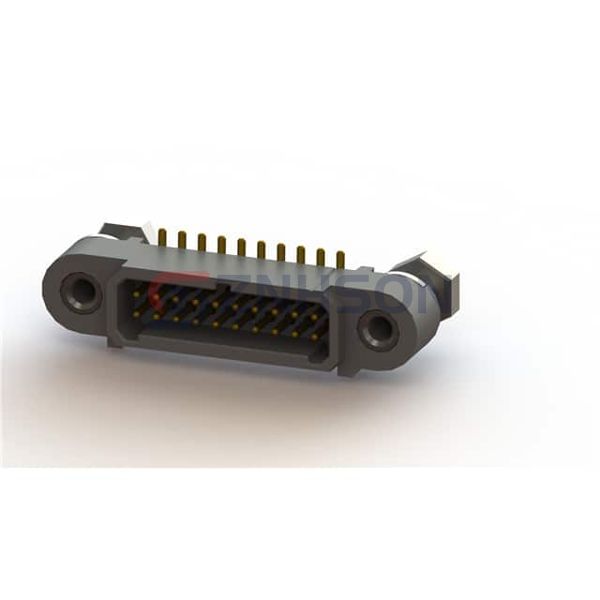

A221T20V22
Nicomatic
Nicomatic
MALE 20POS STRAIGHT SMT 1.27MM
$12.13
Available to order
Reference Price (USD)
1+
$12.13000
500+
$12.0087
1000+
$11.8874
1500+
$11.7661
2000+
$11.6448
2500+
$11.5235
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The A221T20V22 by Nicomatic is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the A221T20V22 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Nicomatic ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.039" (1.00mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.039" (1.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Screw Lock
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.157" (4.00mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 5.90µin (0.150µm)
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Mating Flange, Mounting Flange, Mounting Hardware
- Operating Temperature: -65°C ~ 200°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: 600VAC
