A221Y06VXX
Nicomatic
Nicomatic
MALE 6POS STRAIGHT TRGH 1MM
$6.95
Available to order
Reference Price (USD)
1+
$6.95000
500+
$6.8805
1000+
$6.811
1500+
$6.7415
2000+
$6.672
2500+
$6.6025
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

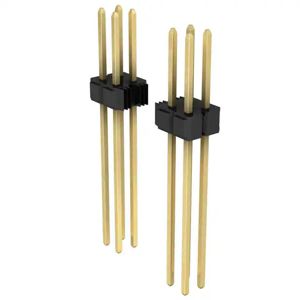

The A221Y06VXX by Nicomatic is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the A221Y06VXX supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Nicomatic ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.039" (1.00mm)
- Number of Positions: 6
- Number of Rows: 2
- Row Spacing - Mating: 0.039" (1.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.161" (4.10mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 5.90µin (0.150µm)
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Mating Flange
- Operating Temperature: -65°C ~ 200°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: 600VAC
