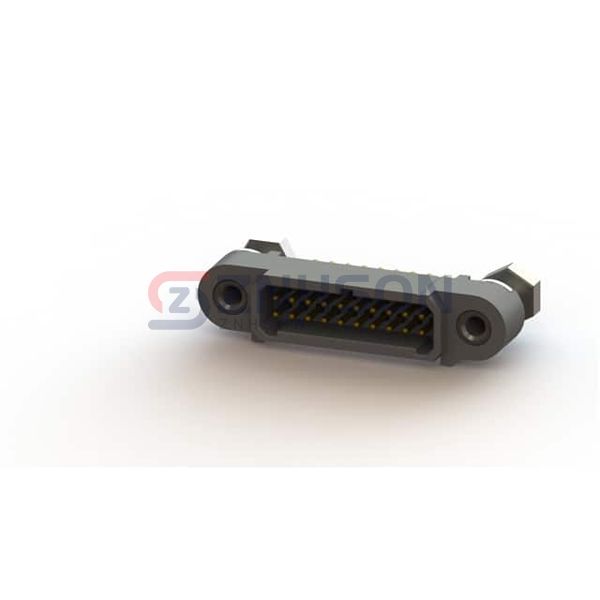

A221Y20V22
Nicomatic
Nicomatic
MALE 20POS STRAIGHT TRGH 1MM
$9.33
Available to order
Reference Price (USD)
1+
$9.33000
500+
$9.2367
1000+
$9.1434
1500+
$9.0501
2000+
$8.9568
2500+
$8.8635
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The A221Y20V22 by Nicomatic is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Nicomatic delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.039" (1.00mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.039" (1.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Screw Lock
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.161" (4.10mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 5.90µin (0.150µm)
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Mating Flange, Mounting Flange, Mounting Hardware
- Operating Temperature: -65°C ~ 200°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: 600VAC
