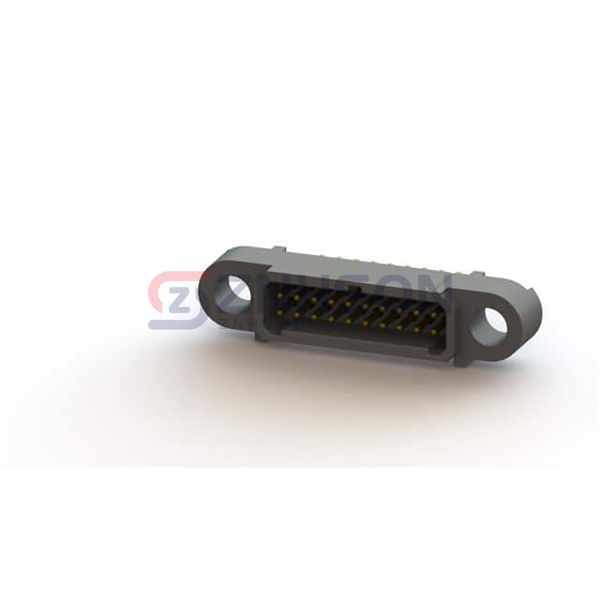

A221Y20VXX
Nicomatic

Nicomatic
MALE 20POS STRAIGHT TRGH 1MM
$8.00
Available to order
Reference Price (USD)
1+
$8.00000
500+
$7.92
1000+
$7.84
1500+
$7.76
2000+
$7.68
2500+
$7.6
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the A221Y20VXX rectangular connector header from Nicomatic, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the A221Y20VXX adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Nicomatic guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.039" (1.00mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.039" (1.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.161" (4.10mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 5.90µin (0.150µm)
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Mating Flange
- Operating Temperature: -65°C ~ 200°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: 600VAC
