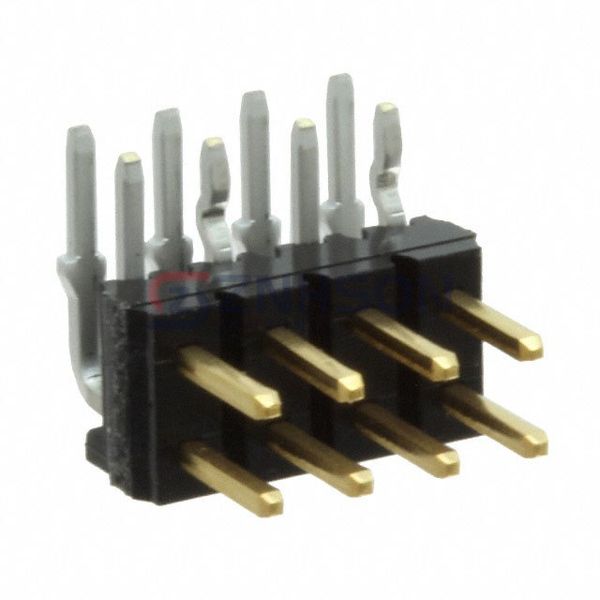

A3B-8PA-2DS(51)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN HEADER R/A 8POS 2MM
$0.47
Available to order
Reference Price (USD)
1+
$0.44000
10+
$0.42000
25+
$0.36000
50+
$0.30600
100+
$0.29400
250+
$0.26400
500+
$0.25200
1,000+
$0.21000
2,500+
$0.19200
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the A3B-8PA-2DS(51) rectangular connector header from Hirose Electric Co Ltd for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. Hirose Electric Co Ltd is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 8
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Kinked Pin, Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.138" (3.50mm)
- Contact Length - Post: 0.102" (2.60mm)
- Overall Contact Length: -
- Insulation Height: 0.157" (4.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon
- Features: -
- Operating Temperature: -55°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A
- Voltage Rating: 200VAC
Related Products
Samtec Inc.
TSW-126-05-S-S
Samtec Inc.
TSM-114-04-T-SV-LC-TR
TE Connectivity AMP Connectors
966306-6
Samtec Inc.
TSM-104-02-G-DV
Samtec Inc.
FTM-145-02-L-DV
Molex
0022287023
Samtec Inc.
FTSH-119-04-F-D
Samtec Inc.

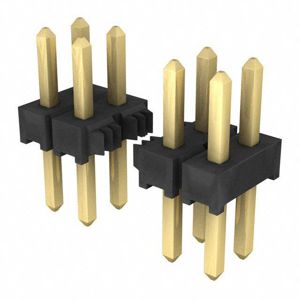

TMM-150-03-G-D
JST Sales America Inc.

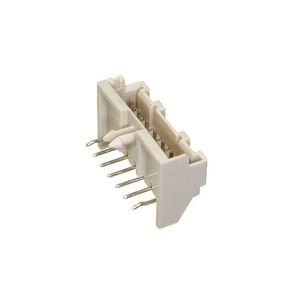

BM07B-XASS-TF(LF)(SN)
