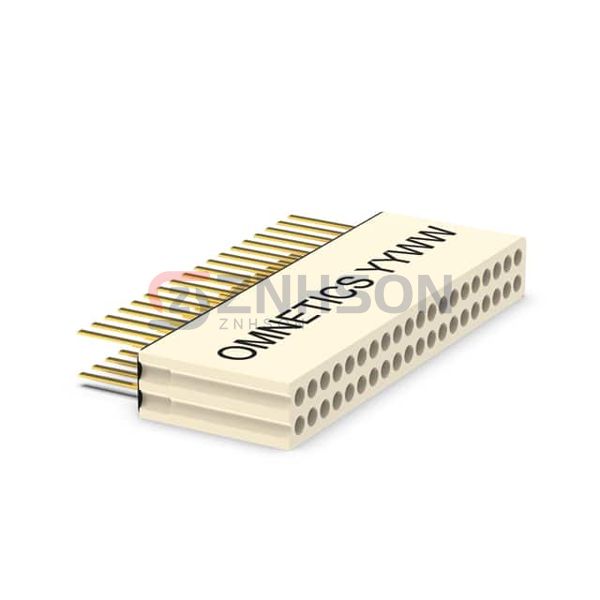

A79022-001
Omnetics
Omnetics
36 POSITION DUAL ROW MALE NANO-M
$85.75
Available to order
Reference Price (USD)
1+
$85.75000
500+
$84.8925
1000+
$84.035
1500+
$83.1775
2000+
$82.32
2500+
$81.4625
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The A79022-001 by Omnetics is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the A79022-001 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Omnetics ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.025" (0.64mm)
- Number of Positions: 40
- Number of Rows: 2
- Row Spacing - Mating: 0.030" (0.76mm)
- Number of Positions Loaded: 36
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: -
- Contact Length - Post: 0.100" (2.54mm)
- Overall Contact Length: -
- Insulation Height: 0.173" (4.40mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Gold
- Contact Material: Beryllium Copper
- Insulation Material: Thermoplastic
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Natural
- Current Rating (Amps): 1A
- Voltage Rating: -
