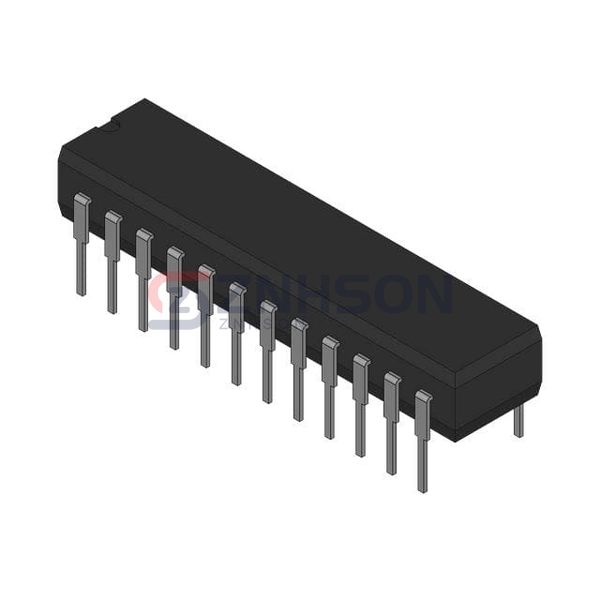

AD563SD/BCD
Analog Devices Inc.
Analog Devices Inc.
12-BIT D/A CONVERTER
$135.52
Available to order
Reference Price (USD)
1+
$135.52000
500+
$134.1648
1000+
$132.8096
1500+
$131.4544
2000+
$130.0992
2500+
$128.744
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The AD563SD/BCD from Analog Devices Inc. is a high-performance Digital to Analog Converter (DAC) designed for precision data acquisition applications. This IC delivers exceptional accuracy and low noise, making it ideal for industrial automation, medical equipment, and audio processing. With its robust design and advanced features, the AD563SD/BCD ensures reliable performance in demanding environments. Key applications include signal processing, instrumentation, and communication systems. Choose Analog Devices Inc.'s AD563SD/BCD for superior digital-to-analog conversion.
Specifications
- Product Status: Active
- Number of Bits: 12
- Number of D/A Converters: 1
- Settling Time: 1.5µs (Typ)
- Output Type: Current - Unbuffered
- Differential Output: No
- Data Interface: -
- Reference Type: Internal
- Voltage - Supply, Analog: 4.75V ~ 15.8V
- Voltage - Supply, Digital: 4.75V ~ 15.8V
- INL/DNL (LSB): ±0.5 (Max), ±0.5 (Max)
- Architecture: Multiplying DAC
- Operating Temperature: -55°C ~ 125°C
- Package / Case: 24-CDIP (0.300", 7.62mm)
- Supplier Device Package: 24-CDIP
- Mounting Type: Through Hole
Related Products
Texas Instruments
DAC7728SRTQT
Analog Devices Inc./Maxim Integrated
MAX505BCNG+
Analog Devices Inc.
LTC2000IY-16#PBF
Analog Devices Inc.
LTC2636HDE-HMI10#TRPBF
Analog Devices Inc.
LTC2637IMS-LMI10#TRPBF
Analog Devices Inc.
LTC2634HUD-HMI8#TRPBF
Texas Instruments
DAC908U
Analog Devices Inc.

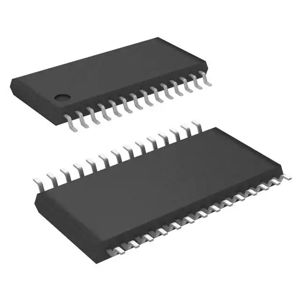

AD9750ARURL7
Texas Instruments

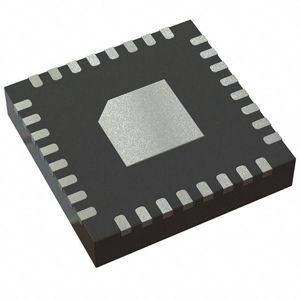

DAC81404RHBT
