AD7225LP-REEL

Analog Devices Inc.

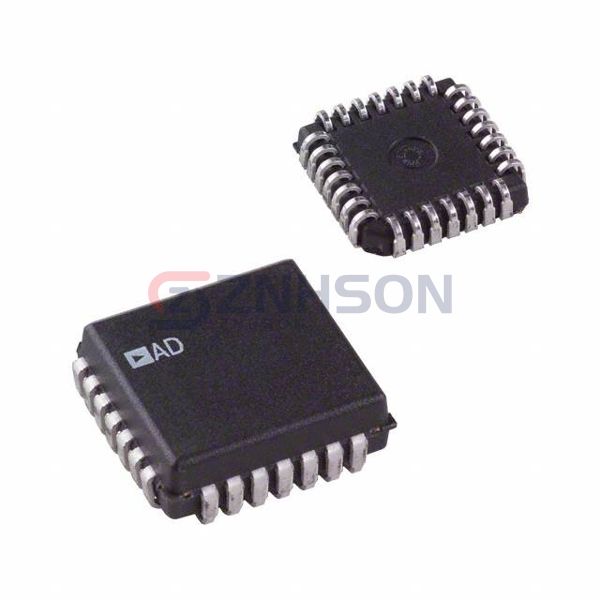

AD7225LP-REEL Preview
Analog Devices Inc.
IC DAC 8BIT V-OUT 28PLCC
$14.88
Available to order
Reference Price (USD)
1+
$14.88000
500+
$14.7312
1000+
$14.5824
1500+
$14.4336
2000+
$14.2848
2500+
$14.136
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

Specifications

  • Product Status: Obsolete
  • Number of Bits: 8
  • Number of D/A Converters: 4
  • Settling Time: 4µs
  • Output Type: Voltage - Buffered
  • Differential Output: No
  • Data Interface: Parallel
  • Reference Type: External
  • Voltage - Supply, Analog: 11.4V ~ 16.5V, -5V
  • Voltage - Supply, Digital: 14.25V ~ 15.75V
  • INL/DNL (LSB): ±0.5 (Max), ±1 (Max)
  • Architecture: R-2R
  • Operating Temperature: -40°C ~ 85°C
  • Package / Case: 28-LCC (J-Lead)
  • Supplier Device Package: 28-PLCC (11.51x11.51)
  • Mounting Type: Surface Mount

Related Products

Analog Devices Inc./Maxim Integrated

DS4424N+T&R

Analog Devices Inc.

AD5373BSTZ

Analog Devices Inc.

AD5691RBRMZ-RL7

Analog Devices Inc.

LTC2640ACTS8-LZ12#TRPBF

Texas Instruments

DAC5652MPFBREP

Analog Devices Inc.

LTC2602IMS8#TRPBF

Analog Devices Inc.

LTC2633ACTS8-HZ12#TRMPBF

Analog Devices Inc.

LTC8143ESW#PBF

Analog Devices Inc.

AD1853JRS

Analog Devices Inc./Maxim Integrated

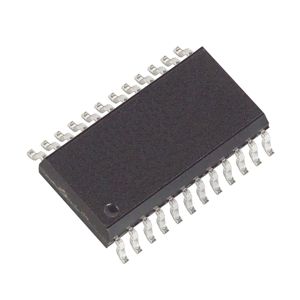

MX7547JCWG+
