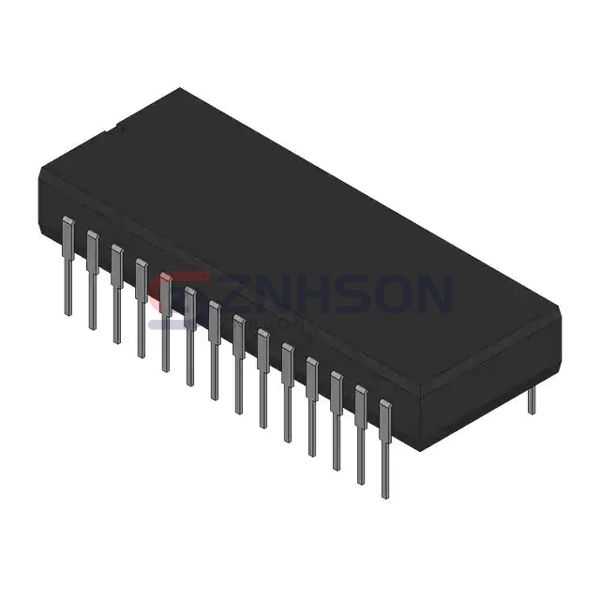

AD7506SD
Analog Devices Inc.
Analog Devices Inc.
MULTIPLEXERS/SWITCHES,16 CHANNEL
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The AD7506SD from Analog Devices Inc. is a high-performance Analog Switch/Multiplexer/Demultiplexer IC designed for precision signal routing applications. As part of our Interface - Analog Switches, Multiplexers, Demultiplexers category, this integrated circuit offers ultra-low on-resistance and minimal charge injection, ensuring signal integrity in demanding environments. These ICs feature wide bandwidth, low power consumption, and excellent channel-to-channel isolation. Typical applications include audio/video signal routing, automated test equipment, data acquisition systems, and communication infrastructure. The AD7506SD is particularly suitable for medical imaging devices, industrial automation controls, and aerospace instrumentation where reliable signal switching is critical.
Specifications
- Product Status: Active
- Switch Circuit: -
- Multiplexer/Demultiplexer Circuit: 16:1
- Number of Circuits: 1
- On-State Resistance (Max): 450Ohm
- Channel-to-Channel Matching (ΔRon): 18Ohm (Typ)
- Voltage - Supply, Single (V+): ±15V
- Voltage - Supply, Dual (V±): ±15V
- Switch Time (Ton, Toff) (Max): 1.5µs, 1µs
- -3db Bandwidth: -
- Charge Injection: -
- Channel Capacitance (CS(off), CD(off)): 5pF, 40pF
- Current - Leakage (IS(off)) (Max): 50nA
- Crosstalk: -
- Operating Temperature: -
- Mounting Type: Through Hole
- Package / Case: 28-CDIP (0.605", 15.37mm)
- Supplier Device Package: 28-CDIP
