ADCMP605BCPZ-R2
Analog Devices Inc.
Analog Devices Inc.
IC COMP LVDS 1CHAN 12-LFCSP
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Analog Devices Inc.'s ADCMP605BCPZ-R2 represents the cutting edge of Linear - Comparator technology. This IC classification specializes in ultra-fast signal comparison with nanosecond response times, coupled with outstanding noise immunity. Designers benefit from features like open-drain outputs and wide operating temperature ranges (-40 C to 125 C). Primary use cases encompass threshold detection in security systems, pulse-width modulation for power electronics, and zero-crossing detection in audio equipment. A notable example is the ADCMP605BCPZ-R2's implementation in solar inverters, where accurate DC voltage comparison ensures maximum power point tracking efficiency.
Specifications
- Product Status: Discontinued at Digi-Key
- Type: with Latch
- Number of Elements: 1
- Output Type: Complementary, LVDS, Rail-to-Rail
- Voltage - Supply, Single/Dual (±): 2.5V ~ 5.5V
- Voltage - Input Offset (Max): 5mV @ 3V
- Current - Input Bias (Max): 5µA @ 3V
- Current - Output (Typ): 50mA
- Current - Quiescent (Max): 3mA
- CMRR, PSRR (Typ): 50dB CMRR, 50dB PSRR
- Propagation Delay (Max): 3ns
- Hysteresis: 100µV
- Operating Temperature: -40°C ~ 125°C

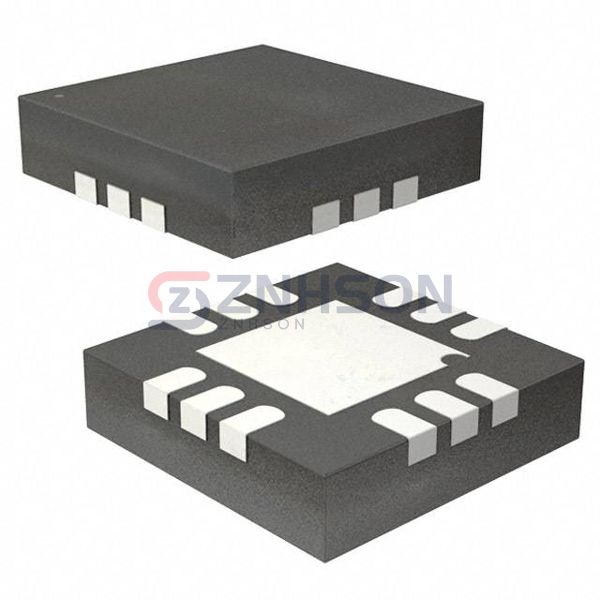

- Package / Case: 12-WFQFN Exposed Pad, CSP
- Mounting Type: Surface Mount
- Supplier Device Package: 12-LFCSP (3x3)
