ADG1233YCPZ-REEL
Analog Devices Inc.
Analog Devices Inc.

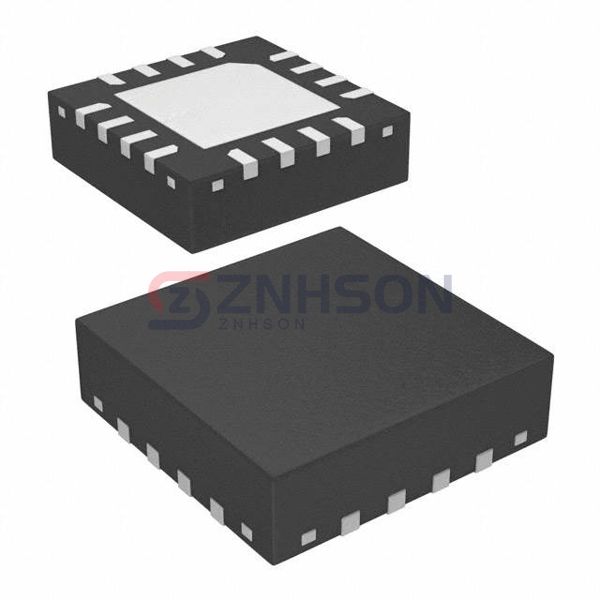

IC SWITCH TRIPLE SPDT 16LFCSP
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ADG1233YCPZ-REEL from Analog Devices Inc.'s Analog Switch/Mux/Demux series revolutionizes signal routing with its integrated fault detection circuitry. This Interface IC automatically reports channel integrity issues while maintaining <100pA leakage at elevated temperatures. Its dual-supply architecture ( 5V to 20V) accommodates industrial process signals without additional level shifting. The ADG1233YCPZ-REEL is extensively used in: semiconductor wafer probers, phased-array antenna controllers, electrophysiology lab equipment, and smart factory robotic arms. Its -60dB crosstalk performance at 10MHz makes it indispensable for high-speed data acquisition systems and spectrum analyzer front-ends.
Specifications
- Product Status: Obsolete
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 3
- On-State Resistance (Max): 190Ohm
- Channel-to-Channel Matching (ΔRon): 3.5Ohm
- Voltage - Supply, Single (V+): 5V ~ 16.5V
- Voltage - Supply, Dual (V±): ±5V ~ 16.5V
- Switch Time (Ton, Toff) (Max): 140ns, 45ns
- -3db Bandwidth: 900MHz
- Charge Injection: 0.5pC
- Channel Capacitance (CS(off), CD(off)): 1.7pF, 1.8pF
- Current - Leakage (IS(off)) (Max): 100pA
- Crosstalk: -85dB @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-VQFN Exposed Pad, CSP
- Supplier Device Package: 16-LFCSP-VQ (4x4)
