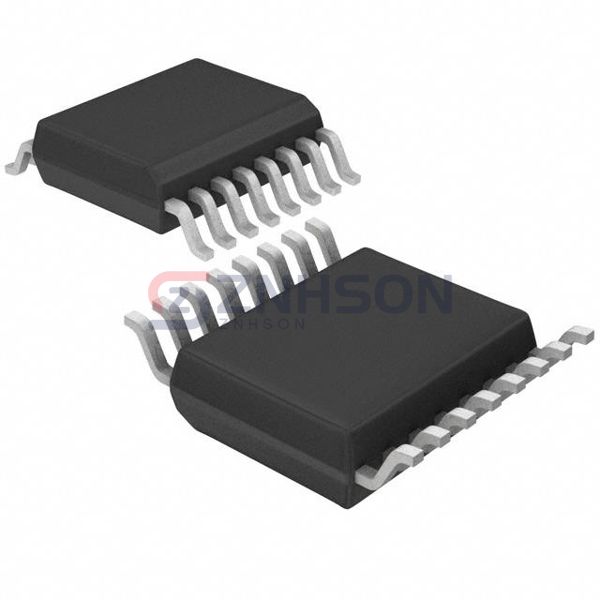

ADG1409SRUZ-EP-RL7
Analog Devices Inc.
Analog Devices Inc.
IC MULTIPLEXER 4X1 16TSSOP
$13.08
Available to order
Reference Price (USD)
1,000+
$10.65237
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ADG1409SRUZ-EP-RL7 from Analog Devices Inc. is a high-performance Analog Switch/Multiplexer/Demultiplexer IC designed for precision signal routing applications. As part of our Interface - Analog Switches, Multiplexers, Demultiplexers category, this integrated circuit offers ultra-low on-resistance and minimal charge injection, ensuring signal integrity in demanding environments. These ICs feature wide bandwidth, low power consumption, and excellent channel-to-channel isolation. Typical applications include audio/video signal routing, automated test equipment, data acquisition systems, and communication infrastructure. The ADG1409SRUZ-EP-RL7 is particularly suitable for medical imaging devices, industrial automation controls, and aerospace instrumentation where reliable signal switching is critical.
Specifications
- Product Status: Active
- Switch Circuit: SP4T
- Multiplexer/Demultiplexer Circuit: 4:1
- Number of Circuits: 2
- On-State Resistance (Max): 4.7Ohm
- Channel-to-Channel Matching (ΔRon): 200mOhm (Typ)
- Voltage - Supply, Single (V+): 5V ~ 16.5V
- Voltage - Supply, Dual (V±): ±4.5V ~ 16.5V
- Switch Time (Ton, Toff) (Max): 120ns, 120ns
- -3db Bandwidth: 115MHz
- Charge Injection: -50pC
- Channel Capacitance (CS(off), CD(off)): 14pF, 40pF
- Current - Leakage (IS(off)) (Max): 200pA
- Crosstalk: -70dB @ 1MHz
- Operating Temperature: -55°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 16-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package: 16-TSSOP
