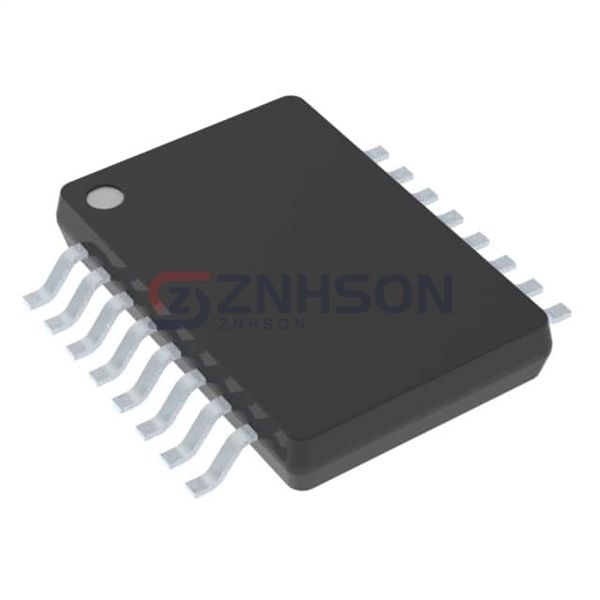

ADG1438BRUZ-REEL7
Analog Devices Inc.
Analog Devices Inc.
IC MULTIPLEXER 8:1 20TSSOP
$5.75
Available to order
Reference Price (USD)
1,000+
$4.41774
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the ADG1438BRUZ-REEL7 - Analog Devices Inc.'s most advanced configurable analog switch IC, featuring programmable channel sequencing and built-in self-test capabilities. As a star product in our Interface components range, it offers 64:1 multiplexing ratio in compact QFN packages. The ADG1438BRUZ-REEL7 enables next-generation designs in quantum computing control systems, telescope focal plane arrays, and neural interface prosthetics. Its dynamic on-resistance compensation technology maintains consistent performance across temperature variations. Other notable applications include: particle accelerator beam controls, underwater sonar arrays, and high-energy physics detector readout systems.
Specifications
- Product Status: Active
- Switch Circuit: -
- Multiplexer/Demultiplexer Circuit: 8:1
- Number of Circuits: 1
- On-State Resistance (Max): 11.5Ohm
- Channel-to-Channel Matching (ΔRon): 550mOhm
- Voltage - Supply, Single (V+): 5V ~ 16.5V
- Voltage - Supply, Dual (V±): ±4.5V ~ 16.5V
- Switch Time (Ton, Toff) (Max): -
- -3db Bandwidth: 82MHz
- Charge Injection: 4pC
- Channel Capacitance (CS(off), CD(off)): 9pF, 58pF
- Current - Leakage (IS(off)) (Max): 150pA
- Crosstalk: -70dB @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 20-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package: 20-TSSOP
