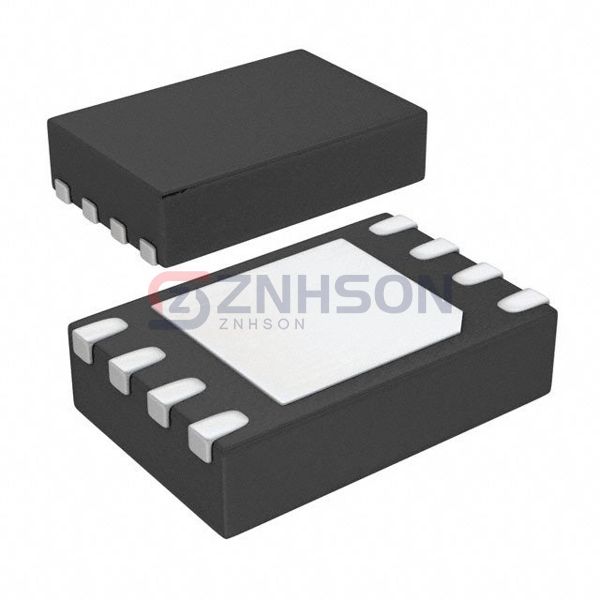

ADG1517BCPZ-REEL7
Analog Devices Inc.
Analog Devices Inc.
IC SWITCH SPST 8LFCSP
$2.29
Available to order
Reference Price (USD)
1+
$2.29000
500+
$2.2671
1000+
$2.2442
1500+
$2.2213
2000+
$2.1984
2500+
$2.1755
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Analog Devices Inc.'s ADG1517BCPZ-REEL7 redefines reliability in Analog Switch ICs with its 10-million operation endurance rating and <1ns skew between channels. This Interface solution incorporates adaptive power management that reduces consumption during idle periods by 90%. The ADG1517BCPZ-REEL7 is transforming signal routing in: satellite transponders, fusion reactor diagnostics, atomic clock synchronizers, and Mars rover instrumentation packages. Its radiation-tolerant design (100krad TID) and single-event upset immunity make it the go-to choice for space applications. Commercial implementations include premium automotive infotainment crosspoint switches and millimeter-wave test equipment.
Specifications
- Product Status: Obsolete
- Switch Circuit: SPST - NO
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 1
- On-State Resistance (Max): 1.85Ohm
- Channel-to-Channel Matching (ΔRon): -
- Voltage - Supply, Single (V+): 5V ~ 16.5V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 175ns, 155ns
- -3db Bandwidth: 65MHz
- Charge Injection: 70pC
- Channel Capacitance (CS(off), CD(off)): 68pF, 68pF
- Current - Leakage (IS(off)) (Max): 10nA (Typ)
- Crosstalk: -
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 8-WFDFN Exposed Pad, CSP
- Supplier Device Package: 8-LFCSP-WD (2x3)
