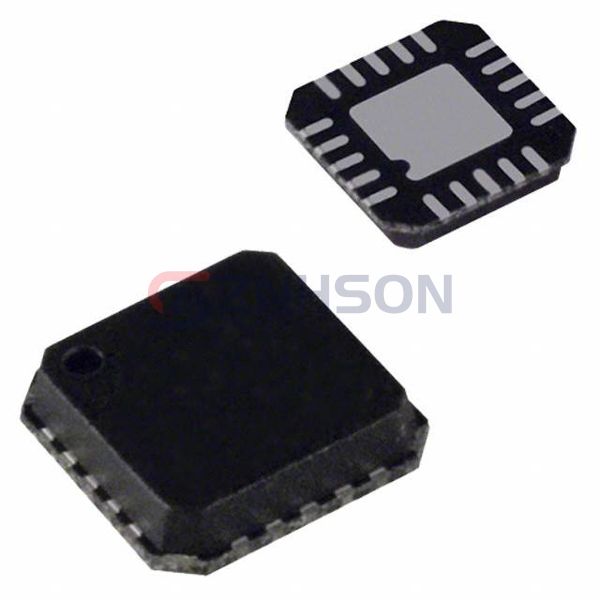

ADG1634BCPZ-REEL7
Analog Devices Inc.
Analog Devices Inc.
IC SWITCH QUAD SPDT 20LFCSP
$6.53
Available to order
Reference Price (USD)
1,500+
$3.32290
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Analog Devices Inc.'s ADG1634BCPZ-REEL7 redefines reliability in Analog Switch ICs with its 10-million operation endurance rating and <1ns skew between channels. This Interface solution incorporates adaptive power management that reduces consumption during idle periods by 90%. The ADG1634BCPZ-REEL7 is transforming signal routing in: satellite transponders, fusion reactor diagnostics, atomic clock synchronizers, and Mars rover instrumentation packages. Its radiation-tolerant design (100krad TID) and single-event upset immunity make it the go-to choice for space applications. Commercial implementations include premium automotive infotainment crosspoint switches and millimeter-wave test equipment.
Specifications
- Product Status: Active
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 4
- On-State Resistance (Max): 4.5Ohm
- Channel-to-Channel Matching (ΔRon): 120mOhm
- Voltage - Supply, Single (V+): 3.3V ~ 16V
- Voltage - Supply, Dual (V±): ±3.3V ~ 8V
- Switch Time (Ton, Toff) (Max): 38ns, 152ns
- -3db Bandwidth: 109MHz
- Charge Injection: -12.4pC
- Channel Capacitance (CS(off), CD(off)): 19pF, 32pF
- Current - Leakage (IS(off)) (Max): 100pA
- Crosstalk: -64dB @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 20-WFQFN Exposed Pad, CSP
- Supplier Device Package: 20-LFCSP (4x4)
