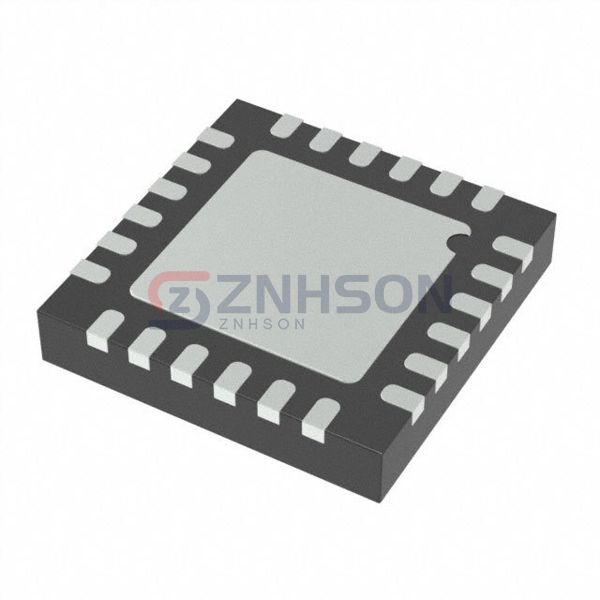

ADG1634LYCPZ-REEL7
Analog Devices Inc.
Analog Devices Inc.
STACKED DIE, SPDT X 4
$6.99
Available to order
Reference Price (USD)
1+
$6.99000
500+
$6.9201
1000+
$6.8502
1500+
$6.7803
2000+
$6.7104
2500+
$6.6405
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Analog Devices Inc.'s ADG1634LYCPZ-REEL7 redefines reliability in Analog Switch ICs with its 10-million operation endurance rating and <1ns skew between channels. This Interface solution incorporates adaptive power management that reduces consumption during idle periods by 90%. The ADG1634LYCPZ-REEL7 is transforming signal routing in: satellite transponders, fusion reactor diagnostics, atomic clock synchronizers, and Mars rover instrumentation packages. Its radiation-tolerant design (100krad TID) and single-event upset immunity make it the go-to choice for space applications. Commercial implementations include premium automotive infotainment crosspoint switches and millimeter-wave test equipment.
Specifications
- Product Status: Active
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 4
- On-State Resistance (Max): 4.6Ohm
- Channel-to-Channel Matching (ΔRon): 120mOhm
- Voltage - Supply, Single (V+): 3.3V ~ 16V, ±3.3V ~ 8V
- Voltage - Supply, Dual (V±): 3.3V ~ 16V, ±3.3V ~ 8V
- Switch Time (Ton, Toff) (Max): 154ns, 195ns
- -3db Bandwidth: 77MHz
- Charge Injection: -12.4pC
- Channel Capacitance (CS(off), CD(off)): 19pF, 32pF
- Current - Leakage (IS(off)) (Max): 150pA
- Crosstalk: -64dB @ 1MHz
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 24-VFQFN Exposed Pad, CSP
- Supplier Device Package: 24-LFCSP (4x4)
