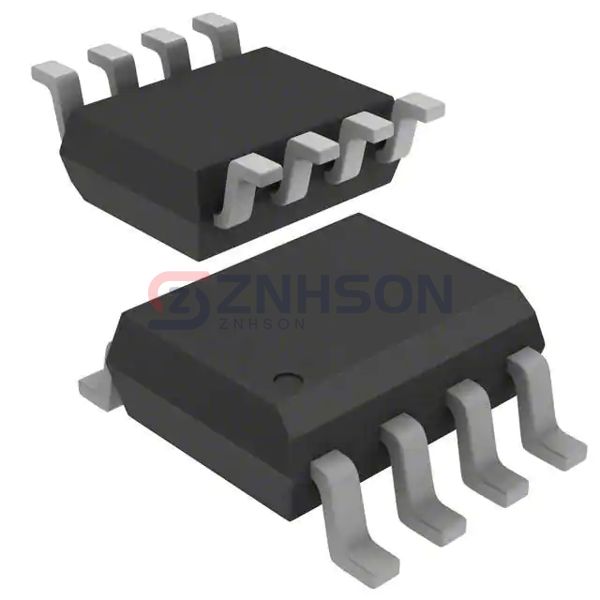

ADG417BR-REEL
Analog Devices Inc.
Analog Devices Inc.
IC SWITCH SPST 8SOIC
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ADG417BR-REEL represents Analog Devices Inc.'s cutting-edge technology in analog signal routing ICs, featuring an innovative charge cancellation technique that eliminates glitches during switching transitions. As part of our specialized Interface components, this device supports both single-ended and differential signal paths with equal precision. Applications span from professional audio mixing consoles to electric vehicle battery management systems, where its <1 typical on-resistance ensures minimal voltage drop. The automotive-qualified version (AEC-Q100) makes it perfect for ADAS sensor arrays and in-vehicle network gateways. Its fail-safe circuitry protects downstream components during hot-swap events.
Specifications
- Product Status: Obsolete
- Switch Circuit: SPST - NC
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 1
- On-State Resistance (Max): 35Ohm
- Channel-to-Channel Matching (ΔRon): -
- Voltage - Supply, Single (V+): 12V
- Voltage - Supply, Dual (V±): ±15V
- Switch Time (Ton, Toff) (Max): 160ns, 100ns
- -3db Bandwidth: -
- Charge Injection: 7pC
- Channel Capacitance (CS(off), CD(off)): 6pF, 6pF
- Current - Leakage (IS(off)) (Max): 250pA
- Crosstalk: -
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 8-SOIC
Related Products
Analog Devices Inc.
ADG433BNZ
Intersil
DG441DJ
Vishay Siliconix
DG413DY-T1
NXP USA Inc.
74HC4053N,652
Analog Devices Inc.
AD7501SQ
Analog Devices Inc.
ADG409BR-REEL7
Analog Devices Inc./Maxim Integrated
MAX4509CPE
Analog Devices Inc./Maxim Integrated
MAX365CPE
Renesas Electronics America Inc

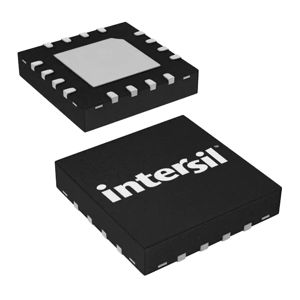

ISL43L420IRZ-T
