ADG436BR
Analog Devices Inc.
Analog Devices Inc.

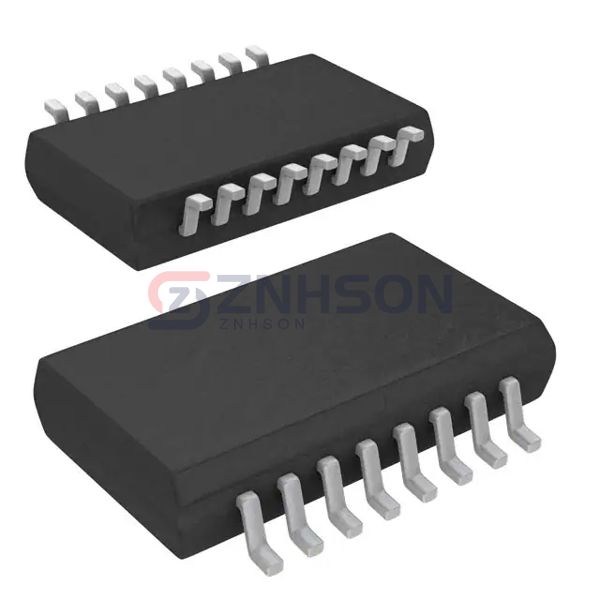

IC SWITCH DUAL SPDT 16SOIC
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Analog Devices Inc.'s ADG436BR sets new benchmarks for analog switch ICs with its patented low-voltage operation down to 1.8V while handling analog signals up to 36V peak. This bidirectional multiplexer/demultiplexer from our premium Interface line offers break-before-make switching action with <20ns transition time. Medical ultrasound systems leverage its precision timing characteristics, while IoT edge devices benefit from its 0.1 A leakage current. The ADG436BR is the preferred choice for: laboratory automation equipment, phased-array radar systems, smart grid sensors, and high-speed data loggers. Its lead-free/GREEN compliance meets global environmental standards.
Specifications
- Product Status: Obsolete
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 2
- On-State Resistance (Max): 12Ohm (Typ)
- Channel-to-Channel Matching (ΔRon): 1Ohm
- Voltage - Supply, Single (V+): 3V ~ 30V
- Voltage - Supply, Dual (V±): ±3V ~ 20V
- Switch Time (Ton, Toff) (Max): 70ns, 60ns (Typ)
- -3db Bandwidth: -
- Charge Injection: 10pC
- Channel Capacitance (CS(off), CD(off)): 13pF
- Current - Leakage (IS(off)) (Max): 250pA
- Crosstalk: -90dB @ 1MHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 16-SOIC
