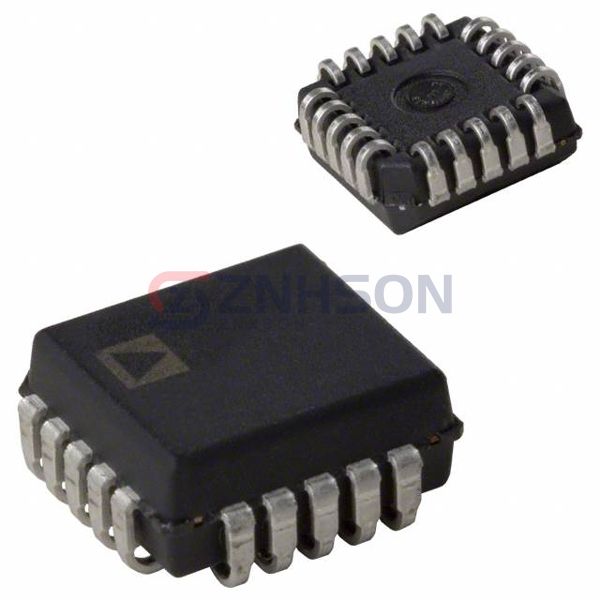

ADG509AKPZ
Analog Devices Inc.
Analog Devices Inc.
IC MULTIPLEXER DUAL 4X1 20PLCC
$4.43
Available to order
Reference Price (USD)
1+
$4.43000
500+
$4.3857
1000+
$4.3414
1500+
$4.2971
2000+
$4.2528
2500+
$4.2085
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the ADG509AKPZ Analog Switch solution by Analog Devices Inc., engineered for seamless signal management in complex electronic systems. Our Interface ICs collection provides robust multiplexing/demultiplexing capabilities with breakthrough performance metrics. These components exhibit nanosecond switching speeds, 15V analog signal handling, and ESD protection up to 2kV. The ADG509AKPZ delivers exceptional performance in battery-powered devices, telecom switches, automotive infotainment systems, and precision measurement instruments. Engineers trust this IC for its consistent performance in harsh temperature ranges (-40 C to +125 C) and its compatibility with both digital control signals and analog waveforms.
Specifications
- Product Status: Obsolete
- Switch Circuit: SP4T
- Multiplexer/Demultiplexer Circuit: 4:1
- Number of Circuits: 2
- On-State Resistance (Max): 450Ohm
- Channel-to-Channel Matching (ΔRon): 22.5Ohm
- Voltage - Supply, Single (V+): 10.8V ~ 16.5V
- Voltage - Supply, Dual (V±): ±10.8V ~ 16.5V
- Switch Time (Ton, Toff) (Max): 300ns, 300ns
- -3db Bandwidth: -
- Charge Injection: 4pC
- Channel Capacitance (CS(off), CD(off)): 5pF, 11pF
- Current - Leakage (IS(off)) (Max): 1nA
- Crosstalk: -
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 20-LCC (J-Lead)
- Supplier Device Package: 20-PLCC (9x9)
