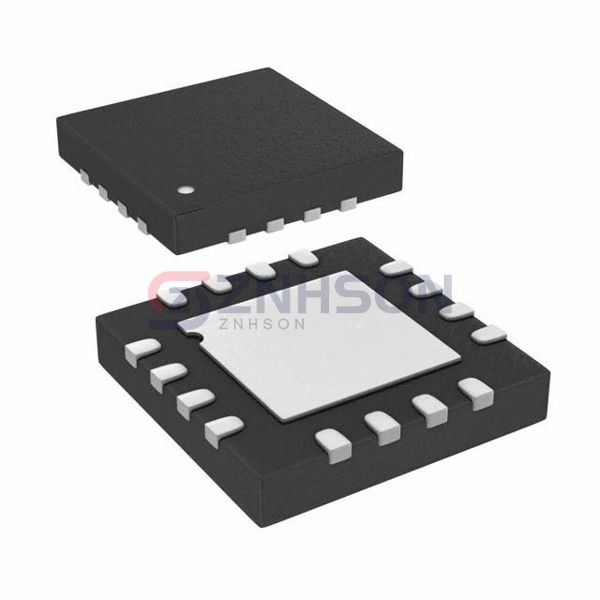

ADG5413FBCPZ-RL7
Analog Devices Inc.
Analog Devices Inc.
IC SWITCH SPST QUAD 16LFCSP
$11.00
Available to order
Reference Price (USD)
1,500+
$5.39946
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your signal path design with Analog Devices Inc.'s ADG5413FBCPZ-RL7, a flagship product in our Analog Switches and Multiplexers category. This IC combines low distortion (<0.01% THD) with high off-isolation (>80dB at 1MHz), making it ideal for high-fidelity applications. The breakthrough architecture enables simultaneous sampling across multiple channels while maintaining signal purity. Key implementations include: industrial process control interfaces, semiconductor test handlers, MRI machine front-ends, and 5G base station signal conditioning. The ADG5413FBCPZ-RL7 meets stringent requirements for military-grade communications equipment and satellite payload management systems, offering radiation-hardened versions upon request.
Specifications
- Product Status: Active
- Switch Circuit: SPST - NO/NC
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 4
- On-State Resistance (Max): 11.5Ohm
- Channel-to-Channel Matching (ΔRon): 50mOhm
- Voltage - Supply, Single (V+): 8V ~ 44V
- Voltage - Supply, Dual (V±): ±5V ~ 22V
- Switch Time (Ton, Toff) (Max): 500ns, 515ns
- -3db Bandwidth: 270MHz
- Charge Injection: -640pC
- Channel Capacitance (CS(off), CD(off)): 12pF, 11pF
- Current - Leakage (IS(off)) (Max): 250pA
- Crosstalk: -70dB @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-WQFN Exposed Pad, CSP
- Supplier Device Package: 16-LFCSP-WQ (4x4)
