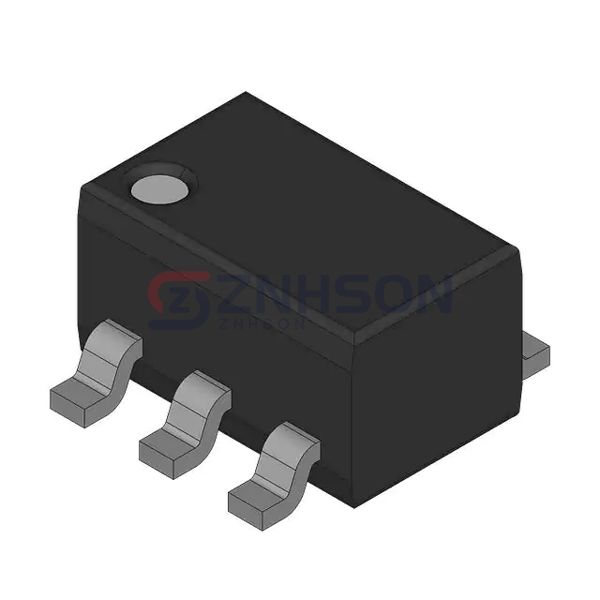

ADG779BKS-R2
Analog Devices Inc.
Analog Devices Inc.
SPDT, 1 FUNC, 1 CHANNEL, CMOS, P
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your signal path design with Analog Devices Inc.'s ADG779BKS-R2, a flagship product in our Analog Switches and Multiplexers category. This IC combines low distortion (<0.01% THD) with high off-isolation (>80dB at 1MHz), making it ideal for high-fidelity applications. The breakthrough architecture enables simultaneous sampling across multiple channels while maintaining signal purity. Key implementations include: industrial process control interfaces, semiconductor test handlers, MRI machine front-ends, and 5G base station signal conditioning. The ADG779BKS-R2 meets stringent requirements for military-grade communications equipment and satellite payload management systems, offering radiation-hardened versions upon request.
Specifications
- Product Status: Active
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 1
- On-State Resistance (Max): 5Ohm
- Channel-to-Channel Matching (ΔRon): 100mOhm
- Voltage - Supply, Single (V+): 1.8V ~ 5.5V
- Voltage - Supply, Dual (V±): 1.8V ~ 5.5V
- Switch Time (Ton, Toff) (Max): 14ns (Typ), 3ns (Typ)
- -3db Bandwidth: 200MHz
- Charge Injection: -
- Channel Capacitance (CS(off), CD(off)): 7pF
- Current - Leakage (IS(off)) (Max): 10pA (Typ)
- Crosstalk: -82dB @ 1MHz
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Package / Case: 6-TSSOP, SC-88, SOT-363
- Supplier Device Package: SC-70
Related Products
Analog Devices Inc./Maxim Integrated
MAX4591ESE
Analog Devices Inc./Maxim Integrated
MAX4052CEE
Vishay Siliconix
DG418LDQ-T1-E3
Analog Devices Inc.
ADG201HSKN
Vishay Siliconix
DG419LDY-E3
Vishay Siliconix
DG419LEDY-GE3
Intersil
5962-9073103MEA
Nexperia USA Inc.
74HCT4067DB,118
Renesas Electronics America Inc

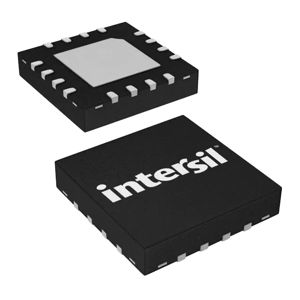

ISL43140IRZ
