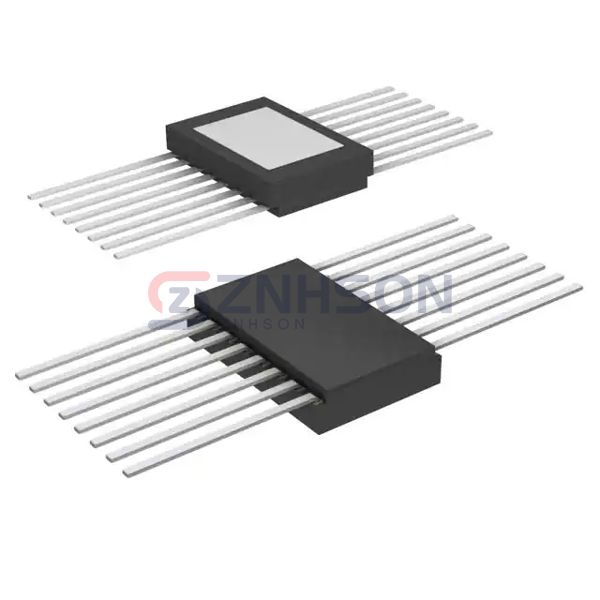

ADG798HFZ
Analog Devices Inc.
Analog Devices Inc.
IC MUX/DEMUX 8:1 16FLATPACK
$157.29
Available to order
Reference Price (USD)
1+
$142.01000
19+
$135.28947
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ADG798HFZ by Analog Devices Inc. represents the pinnacle of analog switching technology, combining 16 independent channels with per-channel digital diagnostics in our Interface ICs lineup. Its <0.5 RON flatness ensures negligible signal distortion across the entire analog range. The ADG798HFZ is revolutionizing: quantum dot measurement systems, superconducting magnet controls, and radio astronomy correlator arrays. Unique selling points include: built-in temperature compensation (0.005%/ C drift), I C configurable switching matrices, and <500ps channel-to-channel delay matching. Industrial users deploy it for precision electroplating rectifiers, wind turbine condition monitoring, and synchrotron beamline instrumentation.
Specifications
- Product Status: Active
- Switch Circuit: -
- Multiplexer/Demultiplexer Circuit: 8:1
- Number of Circuits: 1
- On-State Resistance (Max): 10Ohm
- Channel-to-Channel Matching (ΔRon): 1.25Ohm
- Voltage - Supply, Single (V+): 3V ~ 5.5V
- Voltage - Supply, Dual (V±): ±2.5V
- Switch Time (Ton, Toff) (Max): 30ns, 20ns
- -3db Bandwidth: 55MHz
- Charge Injection: 3pC
- Channel Capacitance (CS(off), CD(off)): 13pF, 85pF
- Current - Leakage (IS(off)) (Max): 180nA
- Crosstalk: -60dB @ 10MHz
- Operating Temperature: -55°C ~ 210°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-CFlatPack
- Supplier Device Package: 16-CFlatPack
