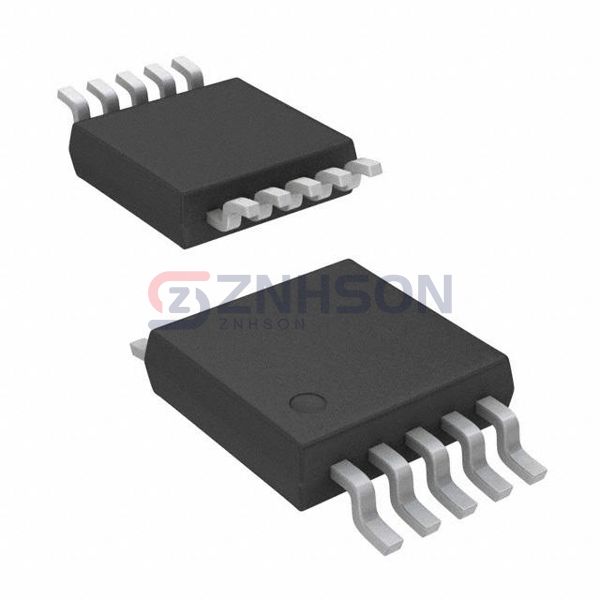

ADG836LYRMZ
Analog Devices Inc.
Analog Devices Inc.
IC SWITCH DUAL SPDT 10MSOP
$4.02
Available to order
Reference Price (USD)
1+
$3.48000
10+
$3.12500
50+
$2.95420
100+
$2.56040
250+
$2.42904
500+
$2.17958
1,000+
$1.83820
2,500+
$1.74629
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ADG836LYRMZ from Analog Devices Inc.'s Analog Switch/Mux/Demux series revolutionizes signal routing with its integrated fault detection circuitry. This Interface IC automatically reports channel integrity issues while maintaining <100pA leakage at elevated temperatures. Its dual-supply architecture ( 5V to 20V) accommodates industrial process signals without additional level shifting. The ADG836LYRMZ is extensively used in: semiconductor wafer probers, phased-array antenna controllers, electrophysiology lab equipment, and smart factory robotic arms. Its -60dB crosstalk performance at 10MHz makes it indispensable for high-speed data acquisition systems and spectrum analyzer front-ends.
Specifications
- Product Status: Active
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 2
- On-State Resistance (Max): 650mOhm
- Channel-to-Channel Matching (ΔRon): 40mOhm
- Voltage - Supply, Single (V+): 1.65V ~ 3.6V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 26ns, 7ns
- -3db Bandwidth: 57MHz
- Charge Injection: 40pC
- Channel Capacitance (CS(off), CD(off)): 25pF
- Current - Leakage (IS(off)) (Max): 1nA
- Crosstalk: -90dB @ 100kHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
- Supplier Device Package: 10-MSOP
