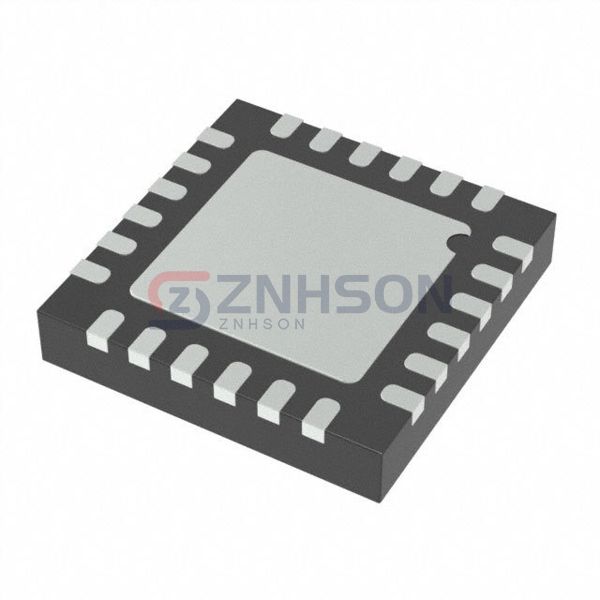

ADGS5412BCPZ
Analog Devices Inc.
Analog Devices Inc.
IC SWITCH QUAD SPST SPI 24LFCSP
$9.44
Available to order
Reference Price (USD)
1+
$8.00000
10+
$7.23100
100+
$5.98670
500+
$5.21312
1,000+
$4.54046
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ADGS5412BCPZ represents Analog Devices Inc.'s cutting-edge technology in analog signal routing ICs, featuring an innovative charge cancellation technique that eliminates glitches during switching transitions. As part of our specialized Interface components, this device supports both single-ended and differential signal paths with equal precision. Applications span from professional audio mixing consoles to electric vehicle battery management systems, where its <1 typical on-resistance ensures minimal voltage drop. The automotive-qualified version (AEC-Q100) makes it perfect for ADAS sensor arrays and in-vehicle network gateways. Its fail-safe circuitry protects downstream components during hot-swap events.
Specifications
- Product Status: Active
- Switch Circuit: SPST - NO
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 4
- On-State Resistance (Max): 10Ohm
- Channel-to-Channel Matching (ΔRon): 350mOhm
- Voltage - Supply, Single (V+): 9V ~ 40V
- Voltage - Supply, Dual (V±): ±9V ~ 22V
- Switch Time (Ton, Toff) (Max): 530ns, 230ns
- -3db Bandwidth: 160MHz
- Charge Injection: 310pC
- Channel Capacitance (CS(off), CD(off)): 17pF, 17pF
- Current - Leakage (IS(off)) (Max): 250pA
- Crosstalk: -70dB @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 24-VFQFN Exposed Pad, CSP
- Supplier Device Package: 24-LFCSP (4x4)
Related Products
Analog Devices Inc./Maxim Integrated
MAX327CSE+T
Texas Instruments
TS12A44513DR
Intersil
ISL84541CP
NXP USA Inc.
74LVC1G53GS,115
Vishay Siliconix
DG451EQ-T1-E3
Analog Devices Inc./Maxim Integrated
MAX4657EUA+T
Texas Instruments
TMUX7219DGKR
Analog Devices Inc./Maxim Integrated
MAX4602CPE
Diodes Incorporated

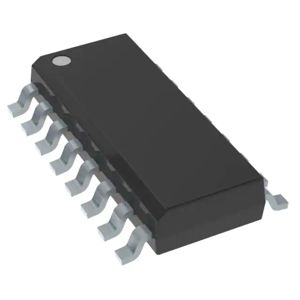

PI5A100WEX
