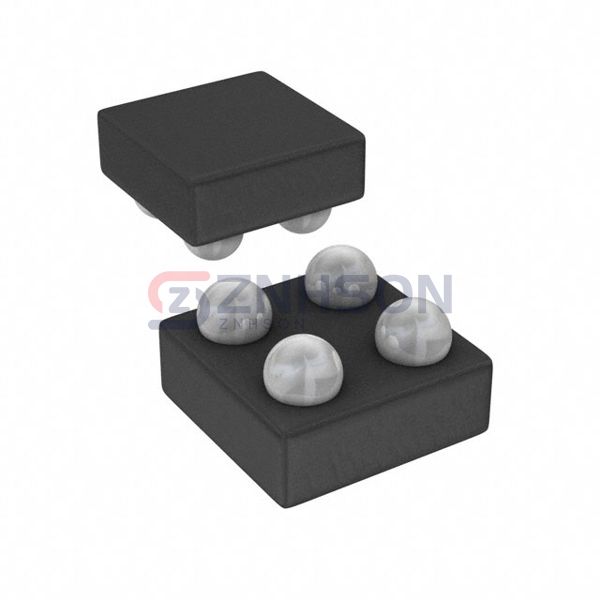

ADP172ACBZ-1.26-R7

Analog Devices Inc.

Manufacturer

Analog Devices Inc.

Description:

IC REG LINEAR 1.26V 300MA 4WLCSP

Datasheet:

ADP172ACBZ-1.26-R7 Datasheet

$0.64

Available to order

Reference Price (USD)

3,000+

$0.46662

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Discover the ADP172ACBZ-1.26-R7, a premium PMIC - Voltage Regulators - Linear IC from Analog Devices Inc., engineered to provide exceptional voltage regulation with minimal power loss. This IC is part of the esteemed PMIC - Voltage Regulators - Linear category, known for its ability to maintain stable voltage levels under varying load conditions. The ADP172ACBZ-1.26-R7 excels with its low quiescent current, high efficiency, and superior thermal management, ensuring optimal performance in demanding environments. Linear voltage regulators like the ADP172ACBZ-1.26-R7 are pivotal in applications requiring precise voltage control without the complexity of switching regulators. The ADP172ACBZ-1.26-R7 offers outstanding line and load regulation, making it a preferred choice for sensitive electronic circuits. Its advanced protection features, including over-current and over-temperature safeguards, further enhance its reliability. The ADP172ACBZ-1.26-R7 finds applications across multiple sectors, including medical devices, industrial automation, and consumer electronics. For example, it is used in wearable health monitors, factory automation systems, and smart home devices. Its ability to deliver clean and stable power makes it indispensable for modern electronic designs, ensuring both performance and safety.

Specifications

Product Status: Active
Output Configuration: Positive
Output Type: Fixed
Number of Regulators: 1
Voltage - Input (Max): 3.6V
Voltage - Output (Min/Fixed): 1.26V
Voltage - Output (Max): -
Voltage Dropout (Max): -
Current - Output: 300mA
Current - Quiescent (Iq): 60 µA
Current - Supply (Max): 260 nA
PSRR: 73dB ~ 47dB (1kHz ~ 100kHz)
Control Features: Enable
Protection Features: Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Operating Temperature: -40°C ~ 125°C
Mounting Type: Surface Mount
Package / Case: 4-UFBGA, WLCSP
Supplier Device Package: 4-WLCSP (0.95x1.03)
