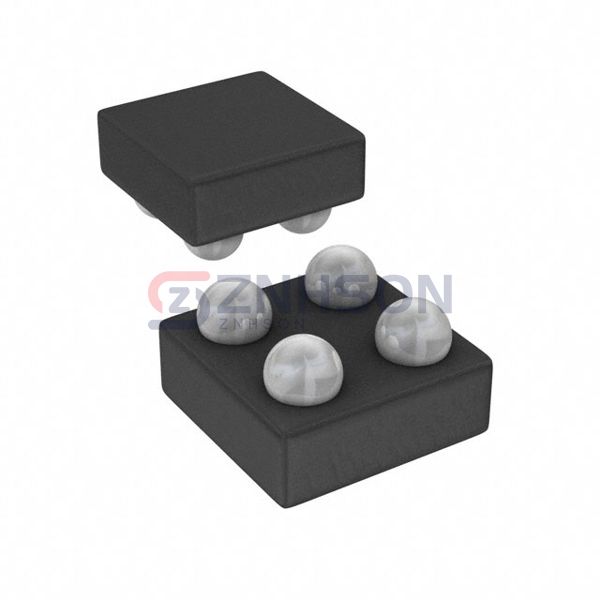

ADP172ACBZ-3.0-R7

Analog Devices Inc.

Manufacturer

Analog Devices Inc.

Description:

IC REG LINEAR 3V 300MA 4WLCSP

Datasheet:

ADP172ACBZ-3.0-R7 Datasheet

$1.09

Available to order

Reference Price (USD)

3,000+

$0.46662

6,000+

$0.44329

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Discover the ADP172ACBZ-3.0-R7 linear voltage regulator IC by Analog Devices Inc., a standout product in our PMIC - Voltage Regulators - Linear category. This IC provides precise voltage regulation with ultra-low noise output, making it perfect for analog and RF circuits. The device features excellent PSRR (Power Supply Rejection Ratio) performance and comes in various package options to suit different design requirements. Linear regulators such as this ADP172ACBZ-3.0-R7 model are extensively used in consumer electronics (smartphones, tablets), IoT devices, and aerospace applications where consistent voltage without switching noise is essential. Its robust design ensures reliable operation in harsh environments with wide temperature ranges.

Specifications

Product Status: Active
Output Configuration: Positive
Output Type: Fixed
Number of Regulators: 1
Voltage - Input (Max): 3.6V
Voltage - Output (Min/Fixed): 3V
Voltage - Output (Max): -
Voltage Dropout (Max): 0.1V @ 300mA
Current - Output: 300mA
Current - Quiescent (Iq): 60 µA
Current - Supply (Max): 260 nA
PSRR: 73dB ~ 47dB (1kHz ~ 100kHz)
Control Features: Enable
Protection Features: Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Operating Temperature: -40°C ~ 125°C
Mounting Type: Surface Mount
Package / Case: 4-UFBGA, WLCSP
Supplier Device Package: 4-WLCSP (0.95x1.03)
