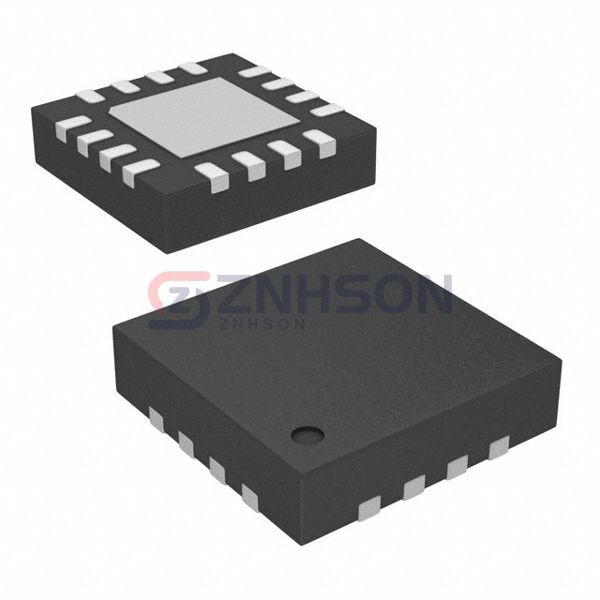

ADP1763WACPZ-1.3-R7
Analog Devices Inc.
Analog Devices Inc.
3ALOWVIN, VERYLOW DO LOW NOISE,H
$11.13
Available to order
Reference Price (USD)
1+
$11.13000
500+
$11.0187
1000+
$10.9074
1500+
$10.7961
2000+
$10.6848
2500+
$10.5735
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Analog Devices Inc.'s ADP1763WACPZ-1.3-R7 represents the cutting edge in linear voltage regulator technology within our Integrated Circuits (ICs) inventory. This PMIC component delivers fixed or adjustable output voltages with outstanding line and load regulation performance. The device incorporates advanced protection features including over-temperature and short-circuit protection, making it exceptionally reliable for critical applications. Linear voltage regulators like the ADP1763WACPZ-1.3-R7 are fundamental in automotive electronics (for infotainment systems and ECUs), industrial control systems, and telecommunications infrastructure where voltage stability is paramount. Engineers particularly value these ICs for their simplicity of design and minimal external component requirements.
Specifications
- Product Status: Active
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 1
- Voltage - Input (Max): 1.98V
- Voltage - Output (Min/Fixed): 1.3V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 0.145V @ 3A
- Current - Output: 3A
- Current - Quiescent (Iq): 8 mA
- Current - Supply (Max): 16 mA
- PSRR: 59dB ~ 37dB (10kHz ~ 1MHz)
- Control Features: Enable, Power Good, Soft Start
- Protection Features: Over Current, Over Temperature, Short Circuit
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 16-WFQFN Exposed Pad, CSP
- Supplier Device Package: 16-LFCSP (3x3)
Related Products
Analog Devices Inc./Maxim Integrated
MAX1792EUA25+
ABLIC Inc.
S-13R1E33-I4T1U3
Nisshinbo Micro Devices Inc.
RP100N291B-TR-FE
ABLIC Inc.
S-1315D18-M5T1U3
STMicroelectronics
L7915ACV-DG
ABLIC Inc.

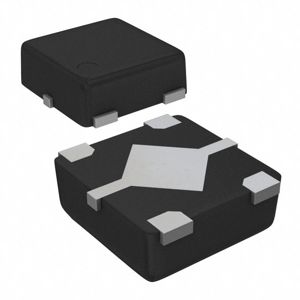

S-13R1E36-A4T2U3
Microchip Technology

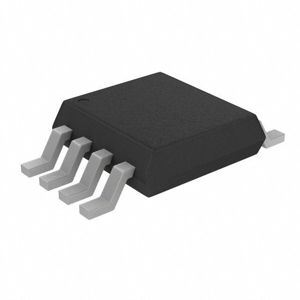

MIC49150-1.8YMM
Analog Devices Inc.

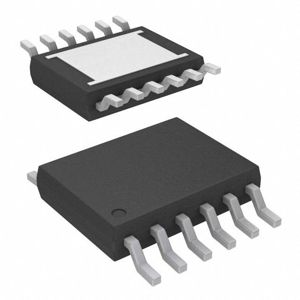

LT3045IMSE#TRPBF
Diodes Incorporated

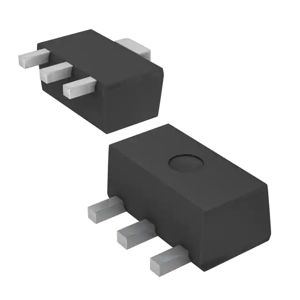

AP130-25YG-13
