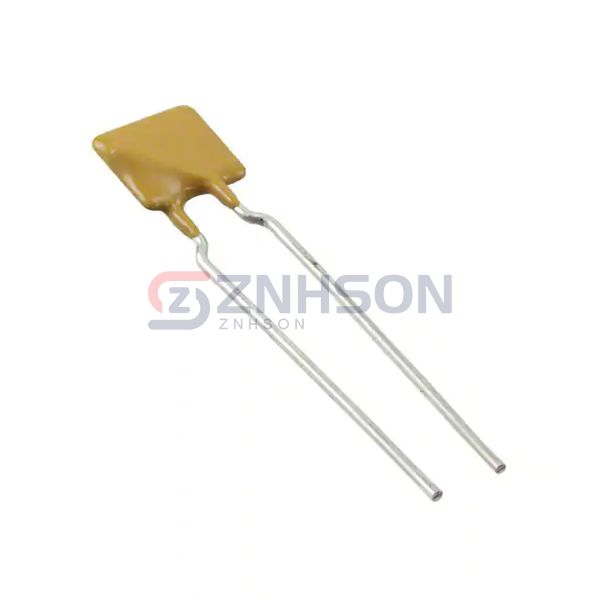

AGRF500S-1.0
Littelfuse Inc.

Littelfuse Inc.
PTC RESET FUSE 16V 5A RADIAL
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the AGRF500S-1.0 PTC resettable fuse by Littelfuse Inc., a top-tier solution for circuit protection. These fuses automatically reset after a fault, providing continuous protection without manual intervention. The AGRF500S-1.0 is engineered to handle high surge currents and offers stable performance across a wide temperature range. Its robust construction ensures reliability in applications such as power supplies, battery packs, and telecommunications equipment. By choosing the AGRF500S-1.0, you're investing in a fuse that combines innovation, safety, and efficiency for all your circuit protection needs.
Specifications
- Product Status: Obsolete
- Type: Polymeric
- Voltage - Max: 16V
- Current - Max: 100 A
- Current - Hold (Ih) (Max): 5 A
- Current - Trip (It): 9.4 A
- Time to Trip: 2.5 s
- Resistance - Initial (Ri) (Min): 14 mOhms
- Resistance - Post Trip (R1) (Max): 34 mOhms
- Resistance - 25°C (Typ): -
- Operating Temperature: -40°C ~ 85°C
- Ratings: AEC-Q200
- Mounting Type: Through Hole
- Package / Case: Radial, Disc
- Size / Dimension: 0.409" L x 0.118" W (10.40mm x 3.00mm)
- Height - Seated (Max): 0.614" (15.60mm)
- Thickness (Max): -
- Lead Spacing: 0.200" (5.08mm)
