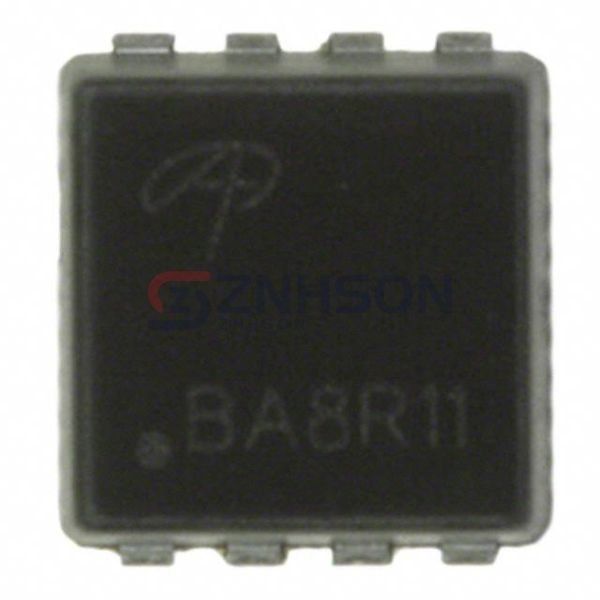

AON6782
Alpha & Omega Semiconductor Inc.
Alpha & Omega Semiconductor Inc.
MOSFET N-CH 30V 24A/85A 8DFN
$0.00
Available to order
Reference Price (USD)
3,000+
$0.74250
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the AON6782 from Alpha & Omega Semiconductor Inc., a high-performance single MOSFET designed for efficient power management in modern electronics. As part of the Discrete Semiconductor Products category, this transistor offers low on-resistance, fast switching speeds, and excellent thermal stability. Ideal for applications such as power supplies, motor control, and LED lighting, the AON6782 ensures reliable performance in demanding environments. Upgrade your circuit designs with Alpha & Omega Semiconductor Inc.'s cutting-edge technology today.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 24A (Ta), 85A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 2.4mOhm @ 20A, 10V
- Vgs(th) (Max) @ Id: 2V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 51 nC @ 10 V
- Vgs (Max): ±12V
- Input Capacitance (Ciss) (Max) @ Vds: 6780 pF @ 15 V
- FET Feature: Schottky Diode (Body)
- Power Dissipation (Max): 2.5W (Ta), 83W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-DFN (5x6)
- Package / Case: 8-PowerSMD, Flat Leads
