AOZ6134DI#A
Alpha & Omega Semiconductor Inc.
Alpha & Omega Semiconductor Inc.
IC USB 2.0 SWITCH 6DFN
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The AOZ6134DI#A from Alpha & Omega Semiconductor Inc.'s Analog Switch/Mux/Demux series revolutionizes signal routing with its integrated fault detection circuitry. This Interface IC automatically reports channel integrity issues while maintaining <100pA leakage at elevated temperatures. Its dual-supply architecture ( 5V to 20V) accommodates industrial process signals without additional level shifting. The AOZ6134DI#A is extensively used in: semiconductor wafer probers, phased-array antenna controllers, electrophysiology lab equipment, and smart factory robotic arms. Its -60dB crosstalk performance at 10MHz makes it indispensable for high-speed data acquisition systems and spectrum analyzer front-ends.
Specifications
- Product Status: Obsolete
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: -
- Number of Circuits: 1
- On-State Resistance (Max): 1.2Ohm
- Channel-to-Channel Matching (ΔRon): 30mOhm
- Voltage - Supply, Single (V+): 1.65V ~ 5.5V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 55ns, 45ns
- -3db Bandwidth: 180MHz
- Charge Injection: 90pC
- Channel Capacitance (CS(off), CD(off)): 7pF
- Current - Leakage (IS(off)) (Max): 30nA
- Crosstalk: -60dB @ 1MHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount

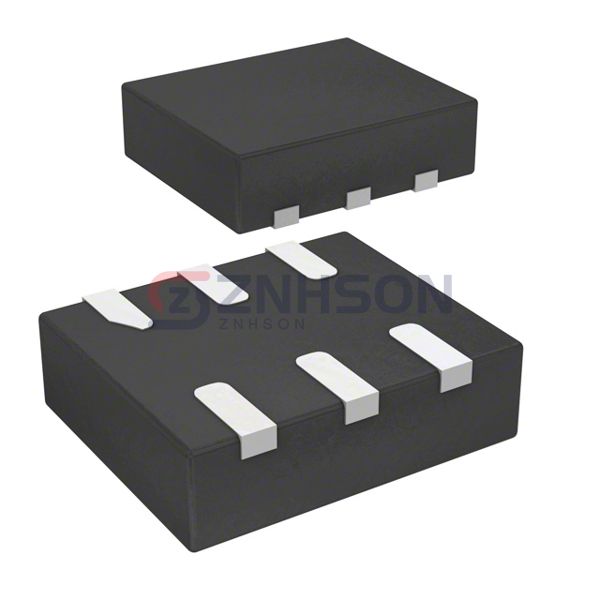

- Package / Case: 6-UFDFN
- Supplier Device Package: 6-DFN (1.2x1.1)
