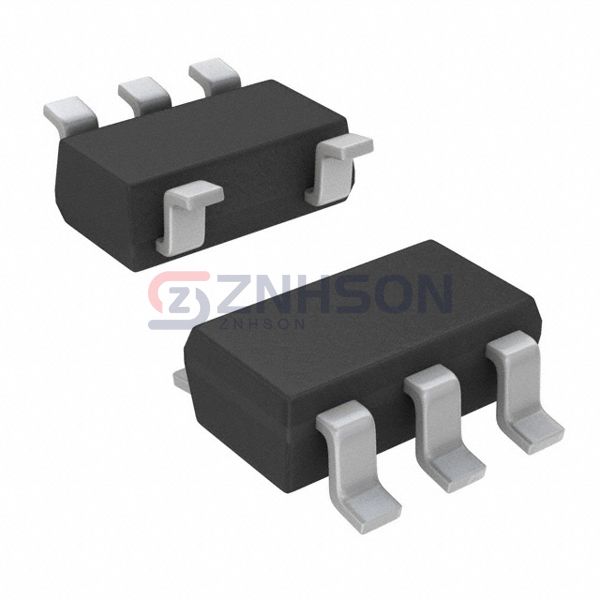

AP1156ADS13

Asahi Kasei Microdevices/AKM

Manufacturer

Asahi Kasei Microdevices/AKM

Description:

IC REG LIN -1.3V 150MA SOT23-5

Datasheet:

AP1156ADS13 Datasheet

$0.00

Available to order

Reference Price (USD)

$0.00000

500+

1000+

1500+

2000+

2500+

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The AP1156ADS13 from Asahi Kasei Microdevices/AKM is a high-performance PMIC - Voltage Regulators - Linear IC that ensures stable and efficient power delivery for your electronic devices. This IC features low quiescent current, high accuracy, and robust thermal performance, making it a versatile solution for various applications. Whether you're designing for consumer electronics or industrial systems, the AP1156ADS13 provides the reliability you need. As a member of the PMIC - Voltage Regulators - Linear family, the AP1156ADS13 excels in delivering consistent voltage outputs with minimal deviation. Its advanced design includes protection features such as over-current and over-temperature shutdown, enhancing its durability and safety. These qualities make it a preferred choice for critical applications. The AP1156ADS13 is widely used in sectors like healthcare, automotive, and consumer electronics. For instance, it powers portable medical devices, in-car entertainment systems, and smart appliances. Its ability to deliver clean and stable power ensures the longevity and efficiency of your electronic designs.

Specifications

Product Status: Obsolete
Output Configuration: Negative
Output Type: Fixed
Number of Regulators: 1
Voltage - Input (Max): -17V
Voltage - Output (Min/Fixed): -1.3V
Voltage - Output (Max): -
Voltage Dropout (Max): -
Current - Output: 150mA
Current - Quiescent (Iq): 300 µA
Current - Supply (Max): -
PSRR: -
Control Features: Enable
Protection Features: Over Current, Over Temperature, Reverse Polarity, Short Circuit
Operating Temperature: -40°C ~ 85°C (TA)
Mounting Type: Surface Mount
Package / Case: SC-74A, SOT-753
Supplier Device Package: SOT-23-5
