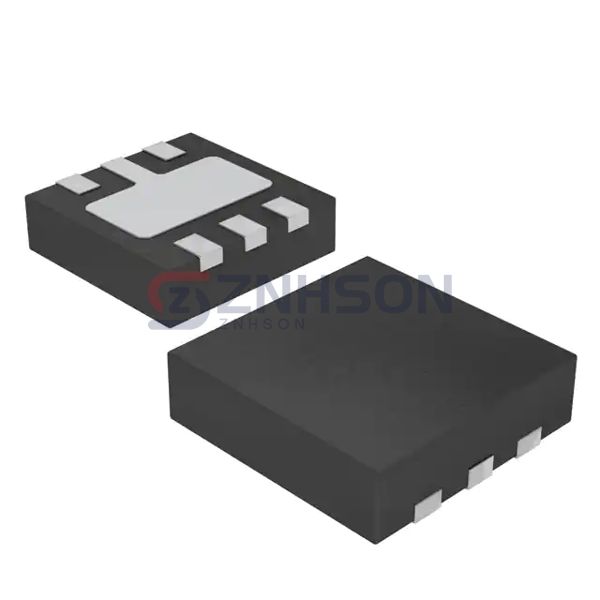

AP2301SN-7
Diodes Incorporated
Diodes Incorporated
IC PWR SWITCH P-CH 1:1 6DFN2020
$0.15
Available to order
Reference Price (USD)
3,000+
$0.16188
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your power management systems with the AP2301SN-7 Power Distribution Switch from Diodes Incorporated. This IC is a standout in the PMIC - Power Distribution Switches and Load Drivers category, offering seamless power control and protection. Its low ON-resistance and high efficiency make it perfect for portable devices, server farms, and renewable energy systems. The AP2301SN-7 also features reverse current blocking and thermal regulation, ensuring long-term stability. Partner with Diodes Incorporated for ICs that drive performance and efficiency in every application.
Specifications
- Product Status: Active
- Switch Type: USB Switch
- Number of Outputs: 1
- Ratio - Input:Output: 1:1
- Output Configuration: High Side
- Output Type: P-Channel
- Interface: On/Off
- Voltage - Load: 2.7V ~ 5.5V
- Voltage - Supply (Vcc/Vdd): Not Required
- Current - Output (Max): 2A
- Rds On (Typ): 70mOhm
- Input Type: Non-Inverting
- Features: Load Discharge, Status Flag
- Fault Protection: Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Supplier Device Package: U-DFN2020-6
- Package / Case: 6-UDFN Exposed Pad
