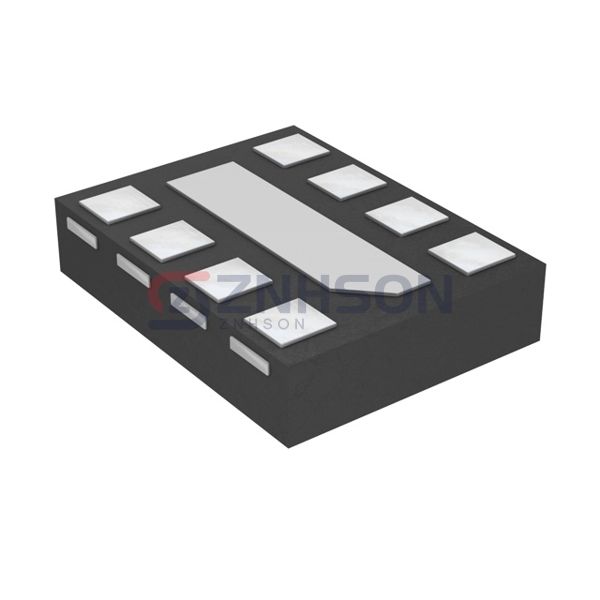

AP7345D-3318RH4-7
Diodes Incorporated
Diodes Incorporated
IC REG LIN 3.3V/1.8V 300MA 8DFN
$0.41
Available to order
Reference Price (USD)
5,000+
$0.34580
10,000+
$0.33280
25,000+
$0.32240
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The AP7345D-3318RH4-7 from Diodes Incorporated is a high-performance linear voltage regulator IC designed for precision power management applications. As part of our PMIC - Voltage Regulators - Linear collection, this component offers exceptional voltage regulation with low dropout characteristics. Featuring thermal shutdown protection and current limiting, this IC maintains stable output voltage even under varying load conditions. These linear regulators are ideal for noise-sensitive applications requiring clean power delivery, such as medical devices, audio equipment, and precision measurement instruments. Typical implementations include power conditioning for microcontroller systems, battery-powered devices, and as post-regulators for switching power supplies.
Specifications
- Product Status: Active
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 2
- Voltage - Input (Max): 5.25V
- Voltage - Output (Min/Fixed): 3.3V, 1.8V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 0.29V @ 300mA, 0.39V @ 300mA
- Current - Output: 300mA, 300mA
- Current - Quiescent (Iq): 140 µA
- Current - Supply (Max): 70 µA
- PSRR: 75dB (1kHz)
- Control Features: Current Limit, Enable
- Protection Features: Short Circuit
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 8-XFDFN Exposed Pad
- Supplier Device Package: X2-DFN1612-8
Related Products
ABLIC Inc.
S-T111B17MC-OGCTFU
Analog Devices Inc.
LT3042EMSE#PBF
Toshiba Semiconductor and Storage
TCR3DM33,RF(SE
Microchip Technology
MIC39100-1.8WS-TR
Analog Devices Inc./Maxim Integrated
MAX1792EUA15
Nisshinbo Micro Devices Inc.
RP108J121B-T1-FE
Renesas Electronics America Inc

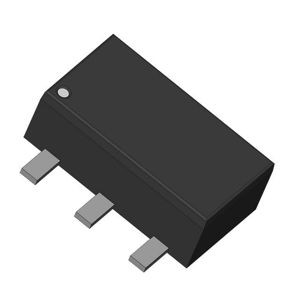

UPC78L05T-2-E1-AZ
Nisshinbo Micro Devices Inc.

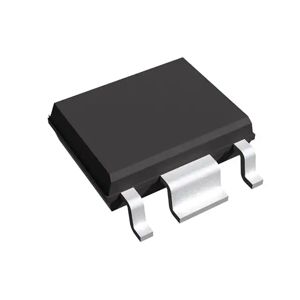

R1514S120B-E2-JE
