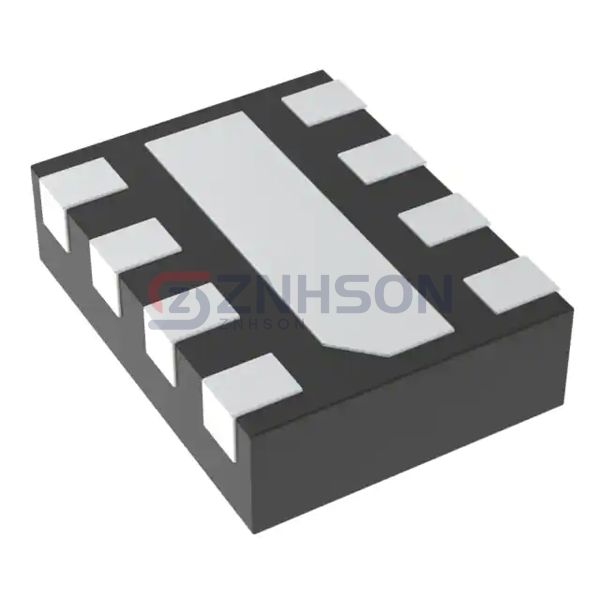

AP7348D-1828RS4-7

Diodes Incorporated

Manufacturer

Diodes Incorporated

Description:

IC REG LIN 1.8V/2.8V 8DFN T&R

Datasheet:

AP7348D-1828RS4-7 Datasheet

$0.48

Available to order

Reference Price (USD)

$0.48000

500+

$0.4752

1000+

$0.4704

1500+

$0.4656

2000+

$0.4608

2500+

$0.456

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Discover the AP7348D-1828RS4-7 linear voltage regulator IC by Diodes Incorporated, a standout product in our PMIC - Voltage Regulators - Linear category. This IC provides precise voltage regulation with ultra-low noise output, making it perfect for analog and RF circuits. The device features excellent PSRR (Power Supply Rejection Ratio) performance and comes in various package options to suit different design requirements. Linear regulators such as this AP7348D-1828RS4-7 model are extensively used in consumer electronics (smartphones, tablets), IoT devices, and aerospace applications where consistent voltage without switching noise is essential. Its robust design ensures reliable operation in harsh environments with wide temperature ranges.

Specifications

Product Status: Active
Output Configuration: Positive
Output Type: Fixed
Number of Regulators: 4
Voltage - Input (Max): 5.25V
Voltage - Output (Min/Fixed): 1.8V, 1.8V, 2.8V, 2.8V
Voltage - Output (Max): -
Voltage Dropout (Max): 0.48V @ 300mA, 0.48V @ 300mA, 0.34V @ 300mA, 0.34V @ 300mA
Current - Output: 300mA, 300mA, 300mA, 300mA
Current - Quiescent (Iq): 280 µA
Current - Supply (Max): -
PSRR: 75dB (1kHz)
Control Features: Enable
Protection Features: Over Current, Over Temperature
Operating Temperature: -40°C ~ 85°C (TA)
Mounting Type: Surface Mount
Package / Case: 8-XFDFN Exposed Pad
Supplier Device Package: X1-DFN1612-8 (Type B)
