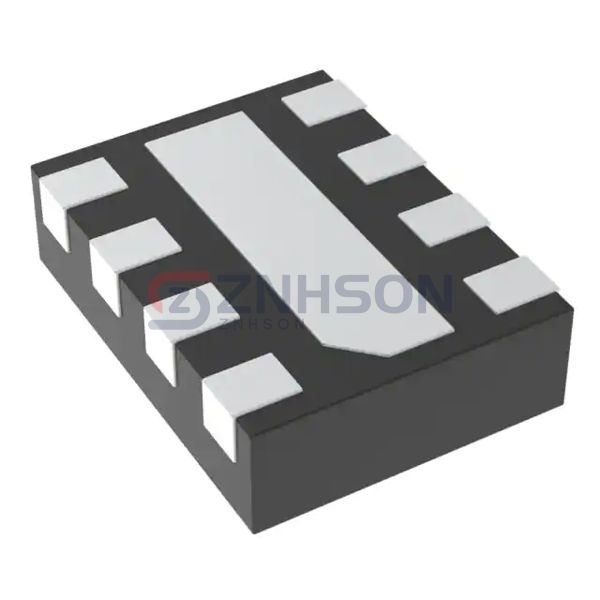

AP7348D-1833RS4-7

Diodes Incorporated

Manufacturer

Diodes Incorporated

Description:

IC REG LIN1.8V/3.3V 8DFN T&R

Datasheet:

AP7348D-1833RS4-7 Datasheet

$0.48

Available to order

Reference Price (USD)

$0.48000

500+

$0.4752

1000+

$0.4704

1500+

$0.4656

2000+

$0.4608

2500+

$0.456

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Diodes Incorporated's AP7348D-1833RS4-7 represents the cutting edge in linear voltage regulator technology within our Integrated Circuits (ICs) inventory. This PMIC component delivers fixed or adjustable output voltages with outstanding line and load regulation performance. The device incorporates advanced protection features including over-temperature and short-circuit protection, making it exceptionally reliable for critical applications. Linear voltage regulators like the AP7348D-1833RS4-7 are fundamental in automotive electronics (for infotainment systems and ECUs), industrial control systems, and telecommunications infrastructure where voltage stability is paramount. Engineers particularly value these ICs for their simplicity of design and minimal external component requirements.

Specifications

Product Status: Active
Output Configuration: Positive
Output Type: Fixed
Number of Regulators: 4
Voltage - Input (Max): 5.25V
Voltage - Output (Min/Fixed): 1.8V, 1.8V, 3.3V, 3.3V
Voltage - Output (Max): -
Voltage Dropout (Max): 0.48V @ 300mA, 0.48V @ 300mA, 0.33V @ 300mA, 0.33V @ 300mA
Current - Output: 300mA, 300mA, 300mA, 300mA
Current - Quiescent (Iq): 280 µA
Current - Supply (Max): -
PSRR: 75dB (1kHz)
Control Features: Enable
Protection Features: Over Current, Over Temperature
Operating Temperature: -40°C ~ 85°C (TA)
Mounting Type: Surface Mount
Package / Case: 8-XFDFN Exposed Pad
Supplier Device Package: X1-DFN1612-8 (Type B)
