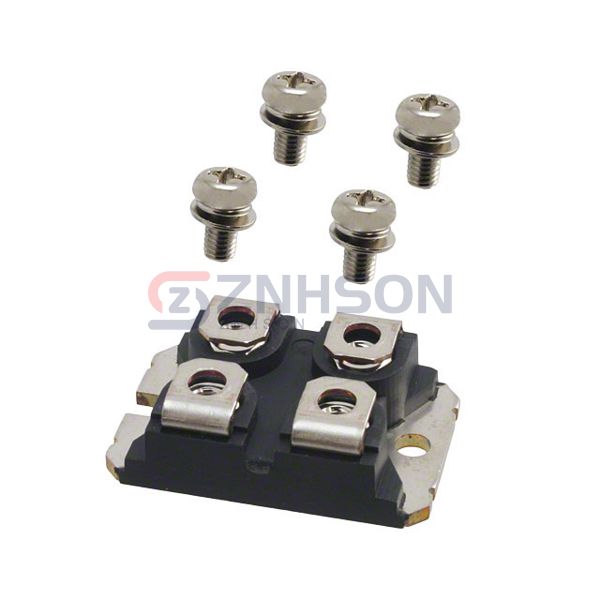

APL502J
Microchip Technology
Microchip Technology
MOSFET N-CH 500V 52A ISOTOP
$87.35
Available to order
Reference Price (USD)
1+
$69.56000
10+
$65.34300
25+
$62.39160
100+
$59.01920
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with the APL502J by Microchip Technology, a top-tier single MOSFET in the Discrete Semiconductor Products range. This component shines in high-power applications such as server farms, electric vehicle charging stations, and smart grid technology. With its low conduction losses and high reliability, the APL502J is the ideal choice for engineers working with Transistors - FETs, MOSFETs - Single components.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 500 V
- Current - Continuous Drain (Id) @ 25°C: 52A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 15V
- Rds On (Max) @ Id, Vgs: 90mOhm @ 26A, 12V
- Vgs(th) (Max) @ Id: 4V @ 2.5mA
- Gate Charge (Qg) (Max) @ Vgs: -
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 9000 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 568W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Supplier Device Package: ISOTOP®
- Package / Case: SOT-227-4, miniBLOC
