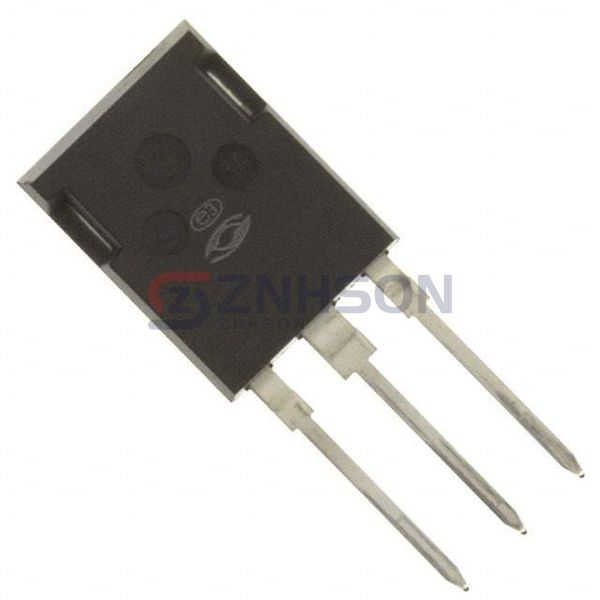

APT12057B2FLLG
Microchip Technology
Microchip Technology
MOSFET N-CH 1200V 22A T-MAX
$40.50
Available to order
Reference Price (USD)
1+
$40.50200
500+
$40.09698
1000+
$39.69196
1500+
$39.28694
2000+
$38.88192
2500+
$38.4769
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the APT12057B2FLLG from Microchip Technology, a high-performance single MOSFET designed for efficient power management in modern electronics. As part of the Discrete Semiconductor Products category, this transistor offers low on-resistance, fast switching speeds, and excellent thermal stability. Ideal for applications such as power supplies, motor control, and LED lighting, the APT12057B2FLLG ensures reliable performance in demanding environments. Upgrade your circuit designs with Microchip Technology's cutting-edge technology today.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 1200 V
- Current - Continuous Drain (Id) @ 25°C: 22A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 570mOhm @ 11A, 10V
- Vgs(th) (Max) @ Id: 5V @ 2.5mA
- Gate Charge (Qg) (Max) @ Vgs: 185 nC @ 10 V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 5155 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 690W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: T-MAX™ [B2]
- Package / Case: TO-247-3 Variant
