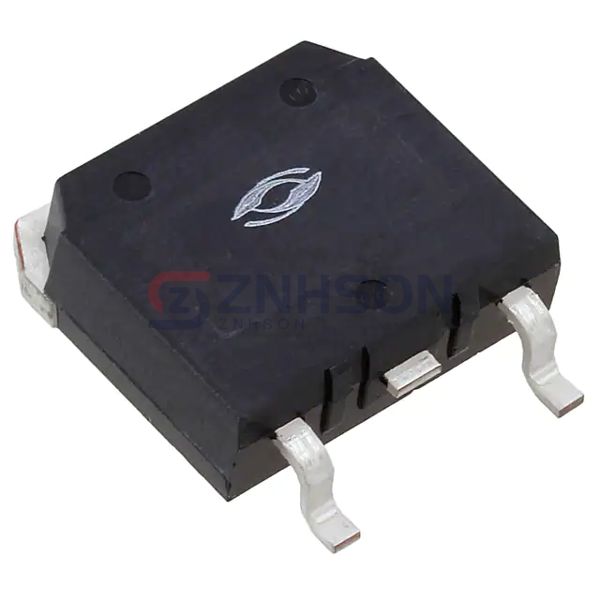

APT25GR120S
Microchip Technology
Microchip Technology
IGBT 1200V 75A 521W D3PAK
$6.59
Available to order
Reference Price (USD)
1+
$8.35000
10+
$7.51800
25+
$6.85000
100+
$6.18180
250+
$5.68060
500+
$5.17936
1,000+
$4.51105
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The APT25GR120S from Microchip Technology is a high-performance Single IGBT transistor designed for robust and efficient power management in various applications. As part of the Discrete Semiconductor Products category, this IGBT offers low saturation voltage and fast switching capabilities, making it ideal for high-efficiency power conversion. Its advanced design ensures thermal stability and durability, even under demanding conditions. Common applications include motor drives, solar inverters, and industrial power supplies, where reliable and efficient switching is crucial. Choose APT25GR120S for superior performance in your next power electronics project.
Specifications
- Product Status: Active
- IGBT Type: NPT
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 75 A
- Current - Collector Pulsed (Icm): 100 A
- Vce(on) (Max) @ Vge, Ic: 3.2V @ 15V, 25A
- Power - Max: 521 W
- Switching Energy: 742µJ (on), 427µJ (off)
- Input Type: Standard
- Gate Charge: 203 nC
- Td (on/off) @ 25°C: 16ns/122ns
- Test Condition: 600V, 25A, 4.3Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
- Supplier Device Package: D3Pak
