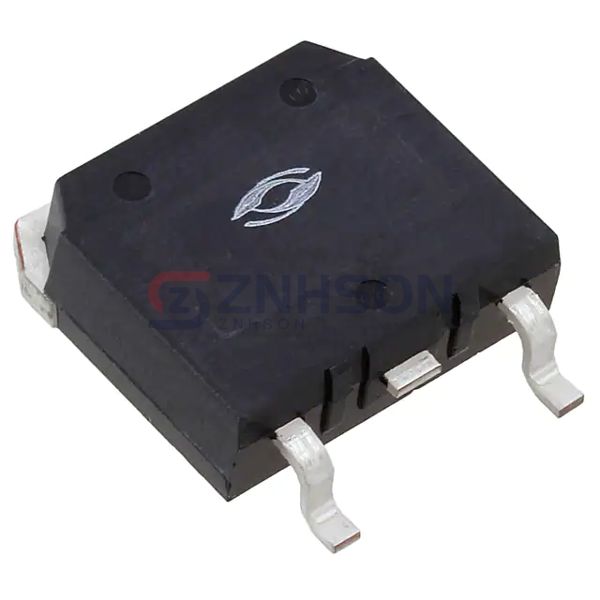

APT25GR120SD15
Microchip Technology
Microchip Technology
IGBT 1200V 75A 521W D3PAK
$8.02
Available to order
Reference Price (USD)
1+
$10.15000
10+
$9.13300
25+
$8.32120
100+
$7.50930
250+
$6.90044
500+
$6.29158
1,000+
$5.47977
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience top-tier performance with the APT25GR120SD15 Single IGBT transistor from Microchip Technology. As a key player in Discrete Semiconductor Products, this IGBT offers excellent thermal management and high switching frequency. Perfect for applications like server power supplies, LED lighting, and telecommunications, the APT25GR120SD15 ensures energy efficiency and reliability. Trust Microchip Technology's expertise to deliver a component that enhances your power electronics with superior functionality.
Specifications
- Product Status: Active
- IGBT Type: NPT
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 75 A
- Current - Collector Pulsed (Icm): 100 A
- Vce(on) (Max) @ Vge, Ic: 3.2V @ 15V, 25A
- Power - Max: 521 W
- Switching Energy: 742µJ (on), 427µJ (off)
- Input Type: Standard
- Gate Charge: 203 nC
- Td (on/off) @ 25°C: 16ns/122ns
- Test Condition: 600V, 25A, 4.3Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
- Supplier Device Package: D3Pak
