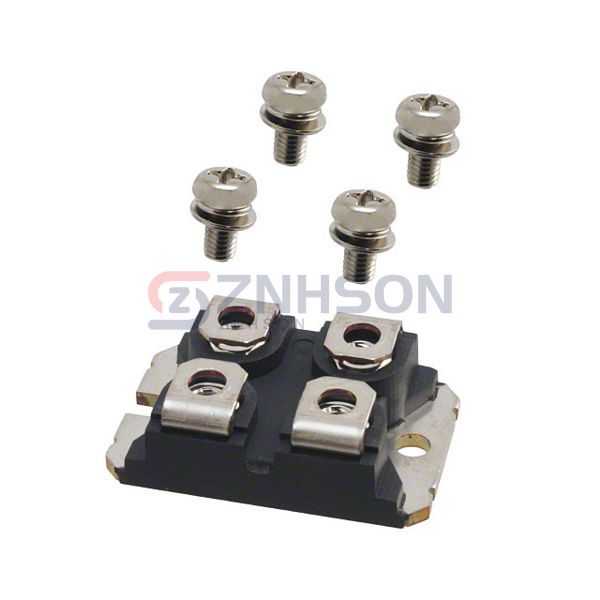

APT2X30D120J
Microchip Technology
Microchip Technology
DIODE MODULE 1.2KV 30A ISOTOP
$28.19
Available to order
Reference Price (USD)
1+
$26.46000
10+
$24.47400
25+
$22.49000
100+
$20.90250
250+
$19.18264
500+
$18.25658
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For engineers specializing in power electronics, the APT2X30D120J by Microchip Technology represents the pinnacle of rectifier diode array technology. Part of the essential Discrete Semiconductor Products lineup, this device features parallel diode configurations for increased current handling. Its applications span photovoltaic systems, UPS backups, and industrial automation controls. With Microchip Technology's patented junction design, the APT2X30D120J achieves superior heat dissipation and long-term stability under continuous load.
Specifications
- Product Status: Active
- Diode Configuration: 2 Independent
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 1200 V
- Current - Average Rectified (Io) (per Diode): 30A
- Voltage - Forward (Vf) (Max) @ If: 2.5 V @ 30 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 370 ns
- Current - Reverse Leakage @ Vr: 250 µA @ 1200 V
- Operating Temperature - Junction: -55°C ~ 175°C
- Mounting Type: Chassis Mount
- Package / Case: SOT-227-4, miniBLOC
- Supplier Device Package: ISOTOP®
Related Products
Micro Commercial Co
MMBD4448HCQW-TP
Rohm Semiconductor
RBQ10T65ANZC9
Panjit International Inc.
MBR1680DC_R2_00001
Nexperia USA Inc.
BAS40-04W,115
Panjit International Inc.
SBA0540SA-AU_R1_000A1
Vishay General Semiconductor - Diodes Division
VS-30CPQ080-N3
Vishay General Semiconductor - Diodes Division
VS-MBR2545CT-M3
SMC Diode Solutions

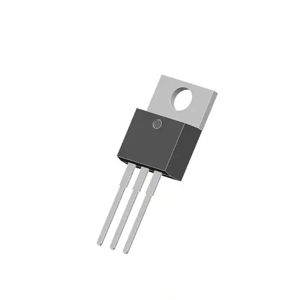

15CTQ045
